Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 5-49
Print-Quality Troubleshooting

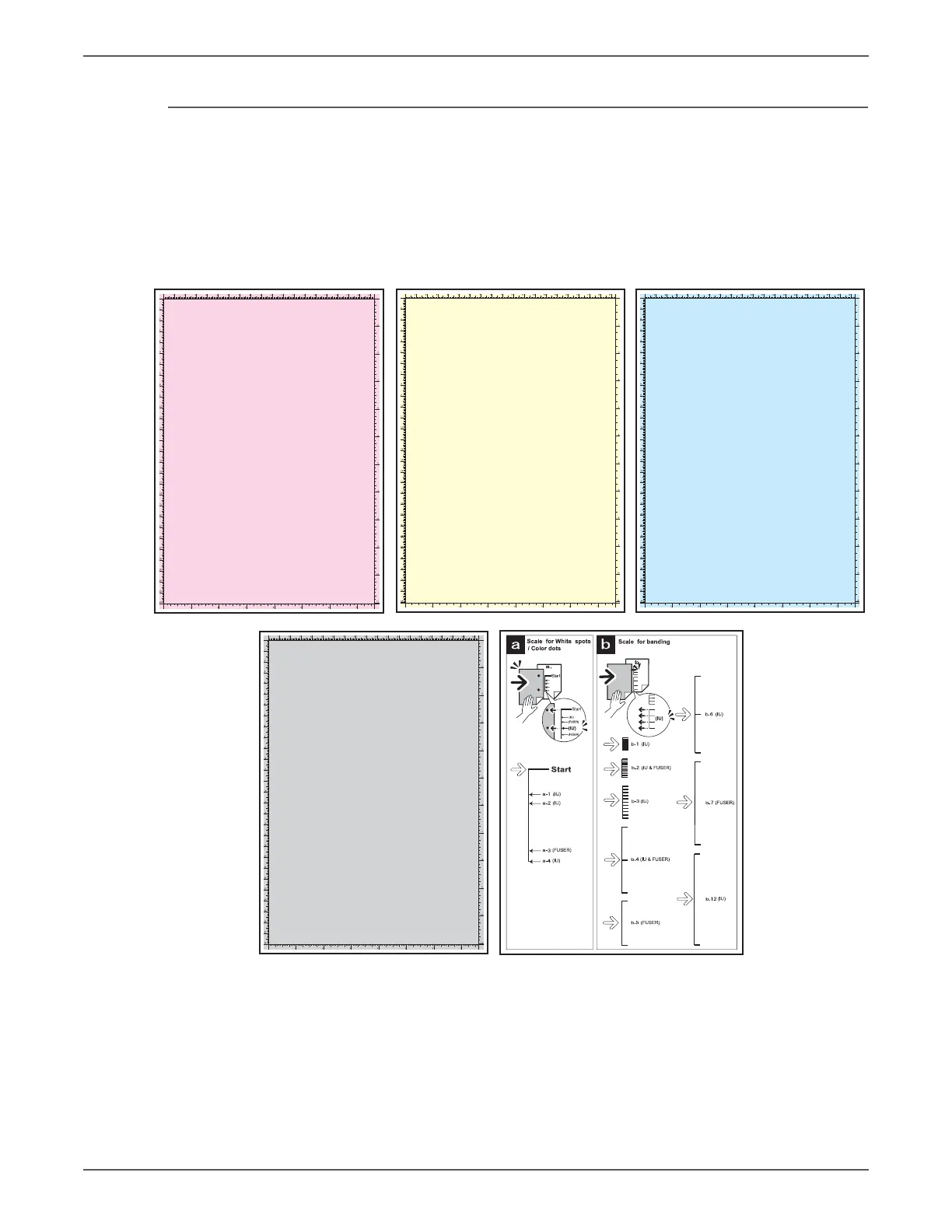

Contamination Check Test Prints
This check produces five pages that are useful for analyzing repeating defects such
as lines or spots that occur at regular interval. By measuring the size of the interval
it is possible to determine which printer component is causing the problem.
Pages 1 through 4: Vertical and horizontal scale patterns on a 20% density
background of one color; for evaluating regularity and intervals.
Page 5: A pitch chart that lists repeating defect intervals and their associated
components.
s6500-153
13
s6500-150
13
s6500-151
13
s6500-152
13
s6500-154

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
