Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-31
Theory of Operation
Transfer Belt and Fuser
Transfer Belt
The Transfer Belt consists of the Transfer Belt and ADC Sensor.
• Belt — The belt feeds media toward the Fuser.
• ADC Sensor — The ADC Sensor detects test toner patches on the belt and
converts them to voltage value. The voltage value is used to control toner
density.
Fuser
The Fuser fixes transferred toner onto the paper using heat and pressure and feeds
the paper before and after toner is fixed. The Fuser consists of these components:
heat roller, heater lamp, thermostat, temperature sensors, pressure belt, exit roller,
and exit sensor.
• Exit Sensor — The exit sensor detects printed pages after fusing.

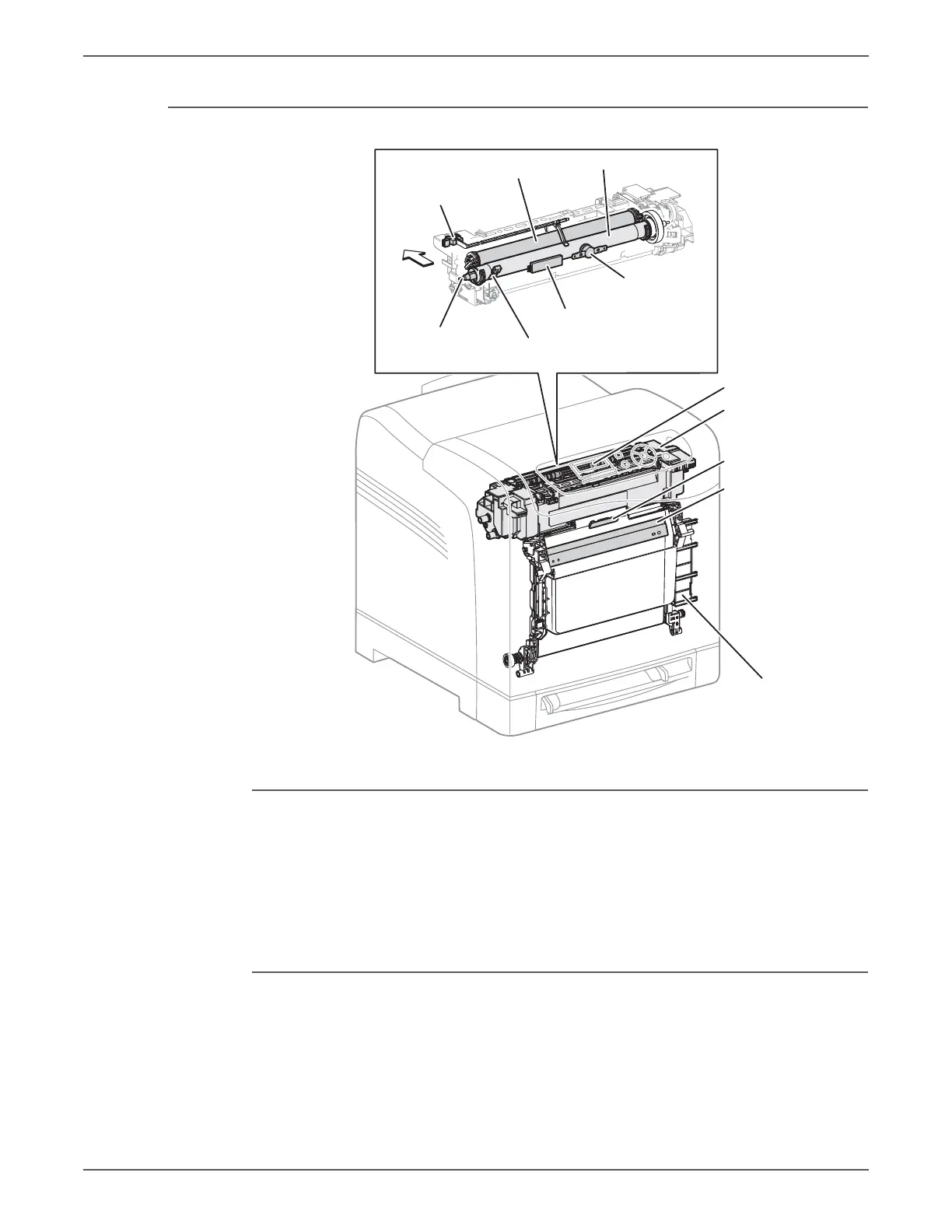

s6500-048
Exit Roller
Transfer Belt
ADC Sensor
Blade
Assembly
Fuser
Heat Roller
Heater Lamp
Thermostat
Temperature Sensor
Temperature Sensor
Pressure Belt
Rear View
Exit Sensor
Front

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
