8-186 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Option No Paper Sensor
PL12.4.13
To simplify removal of feeder components, rotate the feeder to the rear side.
1. Remove the Optional Feeder (page 8-167).
2. Remove the Chute Cover (page 8-170).

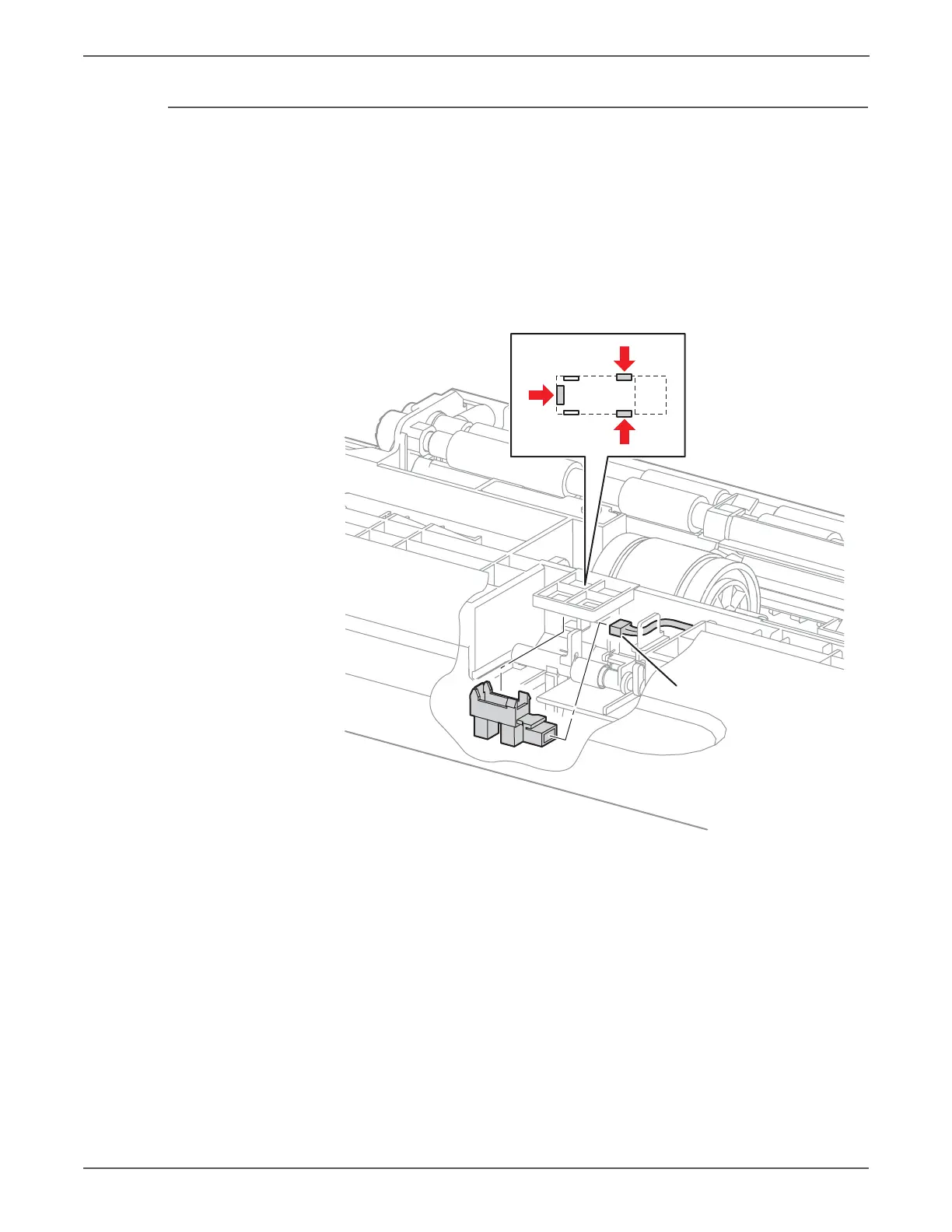

3. Release three hooks that secure the sensor to the feeder.
4. Disconnect P/J4212 and remove the sensor.
s6500-369
P/J4212
