Xerox WorkCentre 6505 Service Manual

5-52 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Print-Quality Troubleshooting

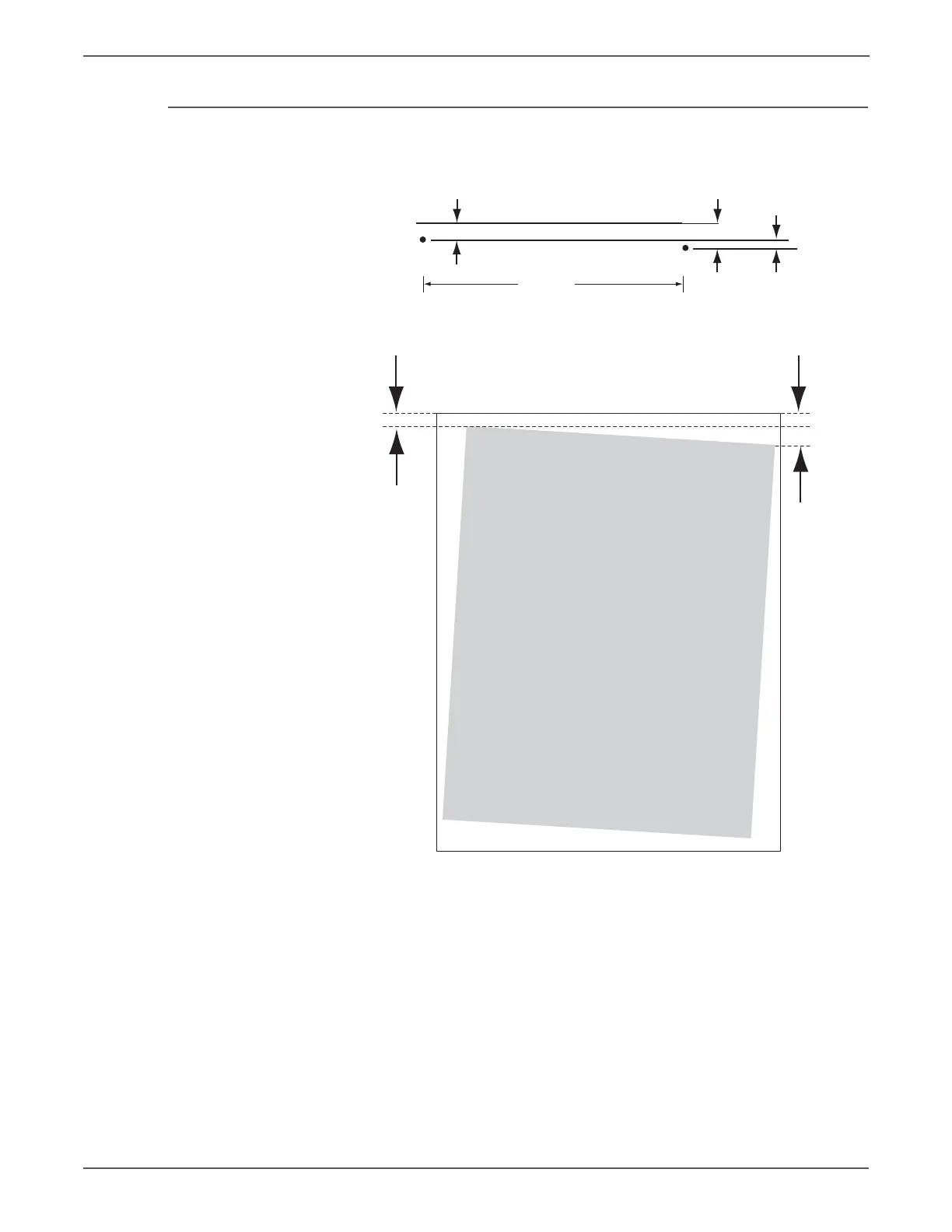

Skew
• 180 mm ± 1.1 mm
To measure skew: Measure the margin of the paper at the leading edge of each
corner, and then take the difference between them.
s6500-157
Lead Edge
A
a = | T/E - C |
C
b = | T/E - D |
Skew = a - b
(within ±1.1 mm)
180 mm
s6500-158
B
A
Image Area
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
