Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-25
Service Parts Disassembly
SFP Right Front Holder
SFP PL1.2.28 (Holder Assy Front R)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Duplex Unit if installed (page 8-162).
Note
For the next two steps, refer to the Front Cover removal procedure
(page 8-22).

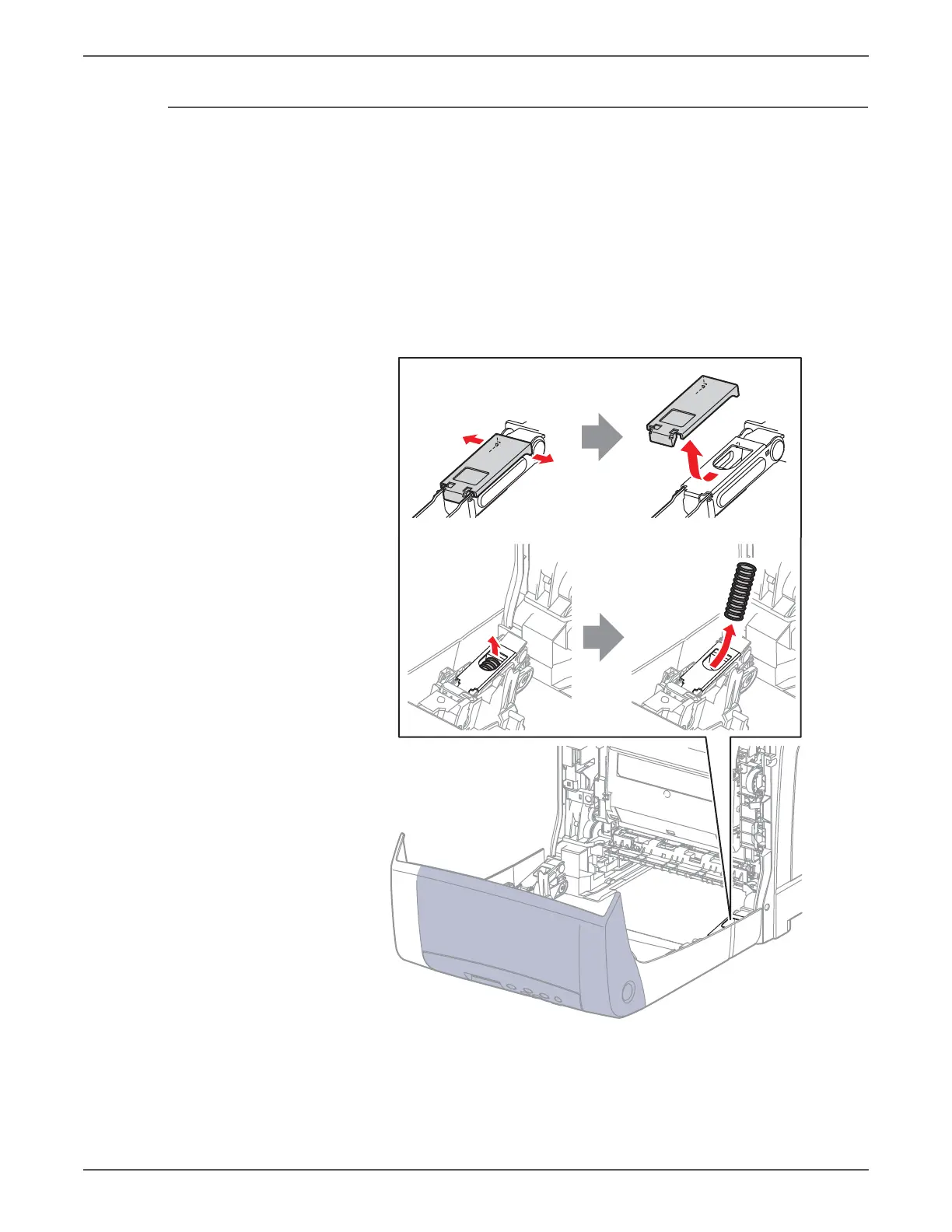

4. Remove the right link cover and spring.
s6500-506
