8-24 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

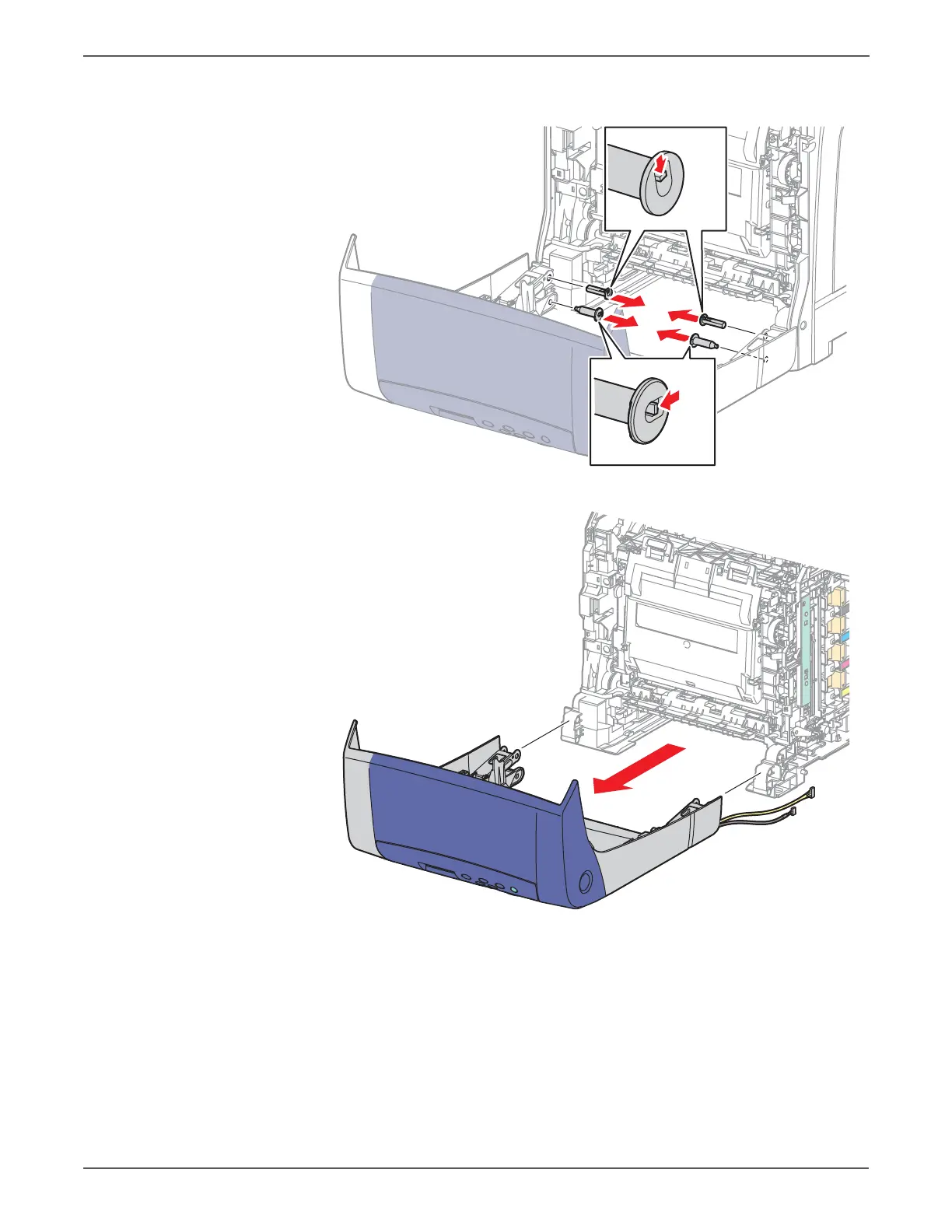

13. Release the 4 pivot shaft hooks and Remove two pivot shafts from the Front
Cover links and 2 pivot shafts from the Front Cover.
14. Pull the Front Cover forward to remove.
s6500-195
s6500-196
