Xerox WorkCentre 6505 Service Manual

8-174 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

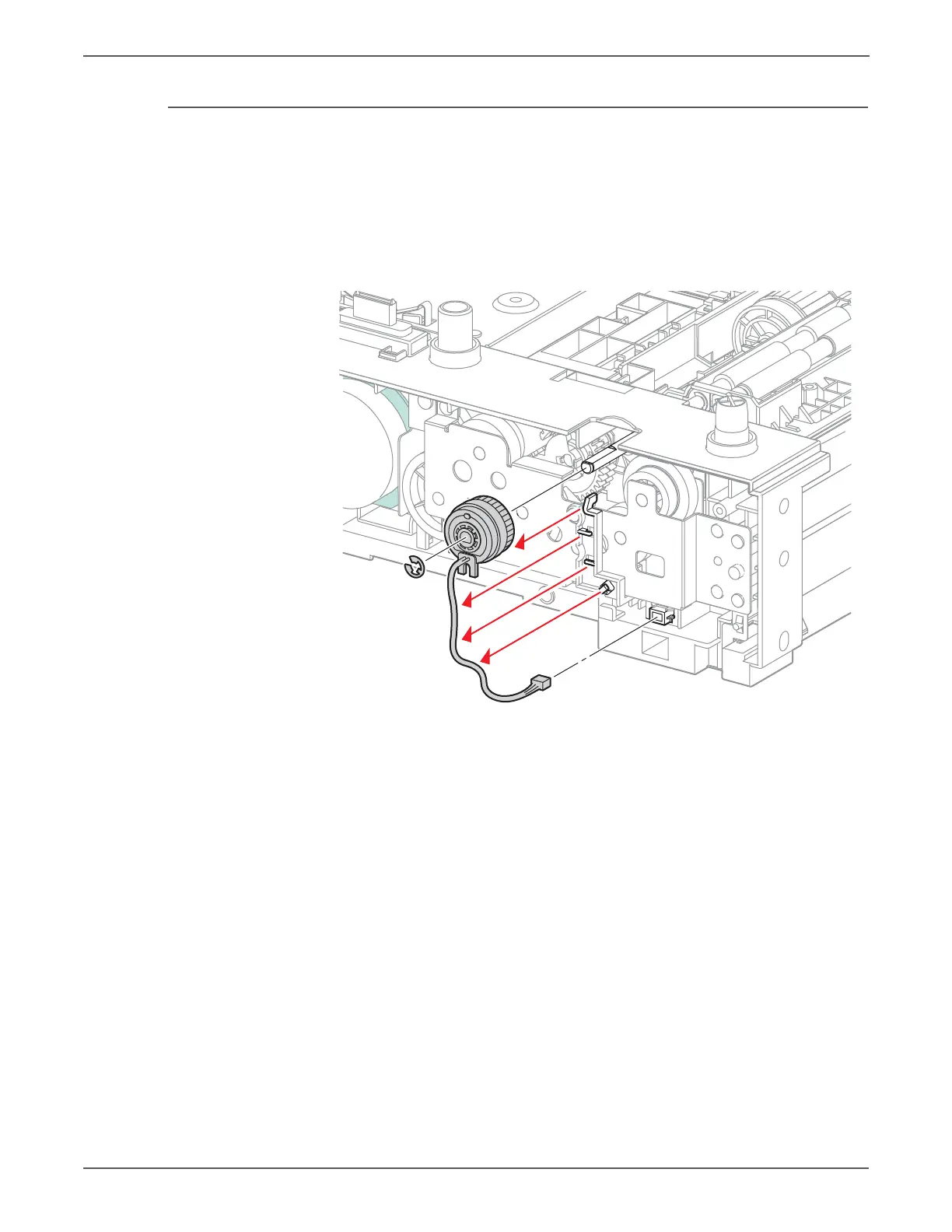

Option Drive Clutch and Bearing
PL12.2.6
1. Remove the Optional Feeder (page 8-167).
2. Remove the Front Cover (page 8-168).
3. Remove the Left Side Cover (page 8-169).
4. Disconnect P/J4201 and release the clutch harness from the guide.
5. Remove the E-ring that secures the clutch to the shaft and remove the clutch.
6. Remove the Feed Gear Kit (page 8-178).
7. Remove the Registration Roller Bearing (page 8-181) to replace the bearing.
Replacement Note
After replacement, check that the gears rotate, the clutch is properly installed
over the stopper, the clutch harness is laced into the guide, and P/J4201 is
connected.
s6500-357
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
