8-136 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

Service Parts Disassembly

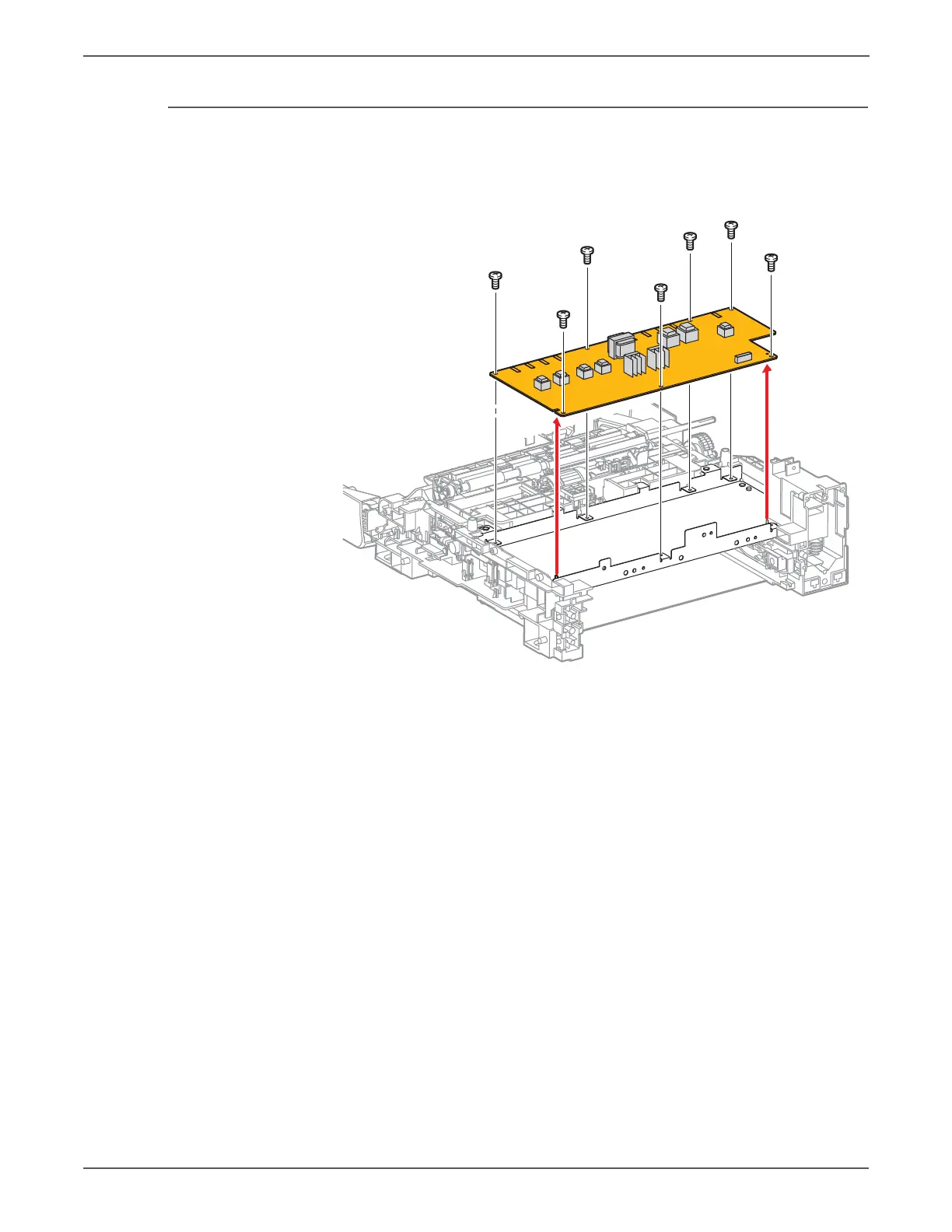

SFP HVPS

PL4.1.19 (PWBA HVPS)

1. Remove the SFP Upper Frame Assembly (page 8-51).

2. Remove the 7 screws (silver, 6mm) that secure HVPS to the HVPS Frame.

s6500-323
