8-154 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

Service Parts Disassembly

MFP HVPS

PL4.1.19 (PWBA HVPS)

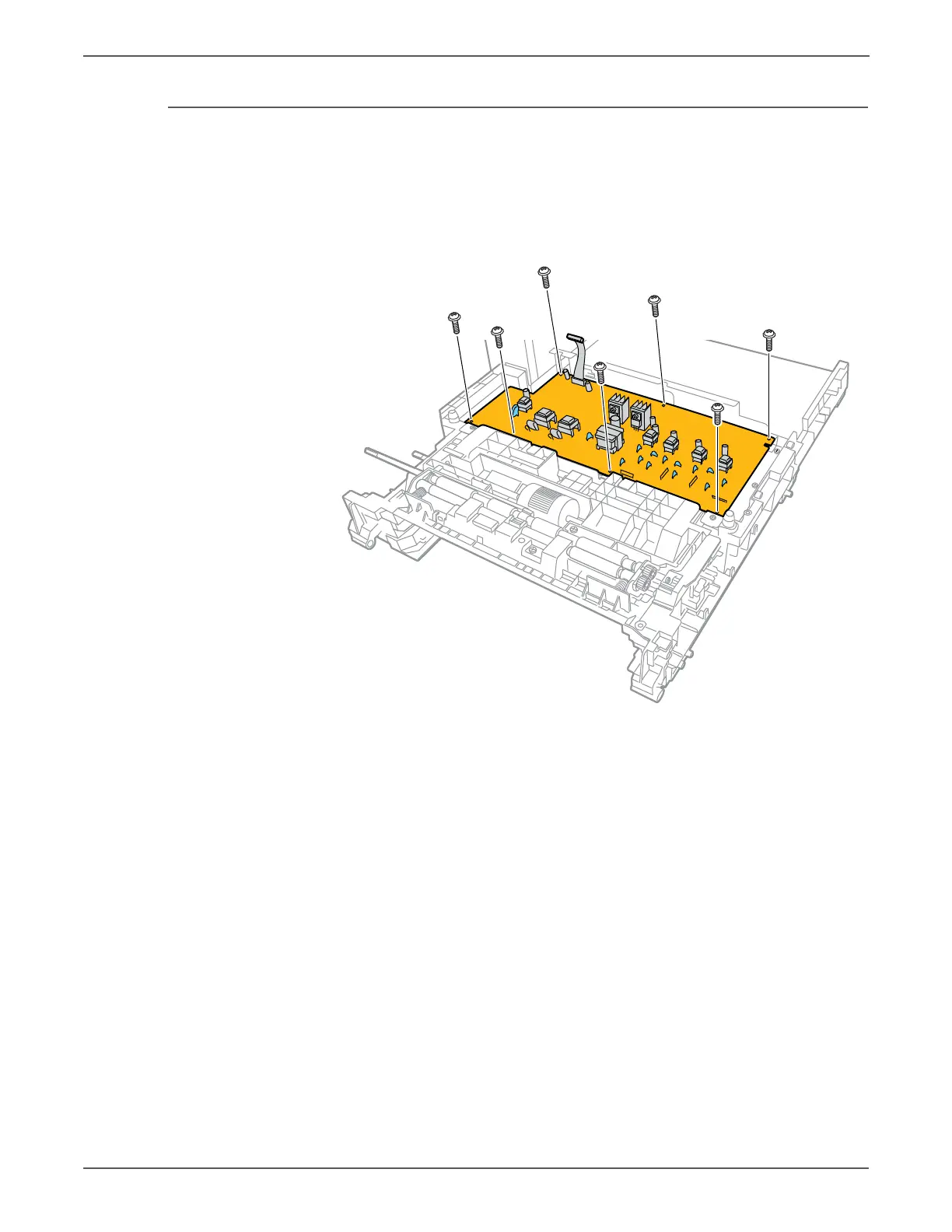

1. Remove the Upper Frame Assembly (page 8-67).

2. Open the Edging Saddle and release the HVPS harness.

3. Remove seven screws (silver, with flange, 6mm) that secure the HVPS to

remove the HVPS.

s6500-339
