10-20 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Wiring

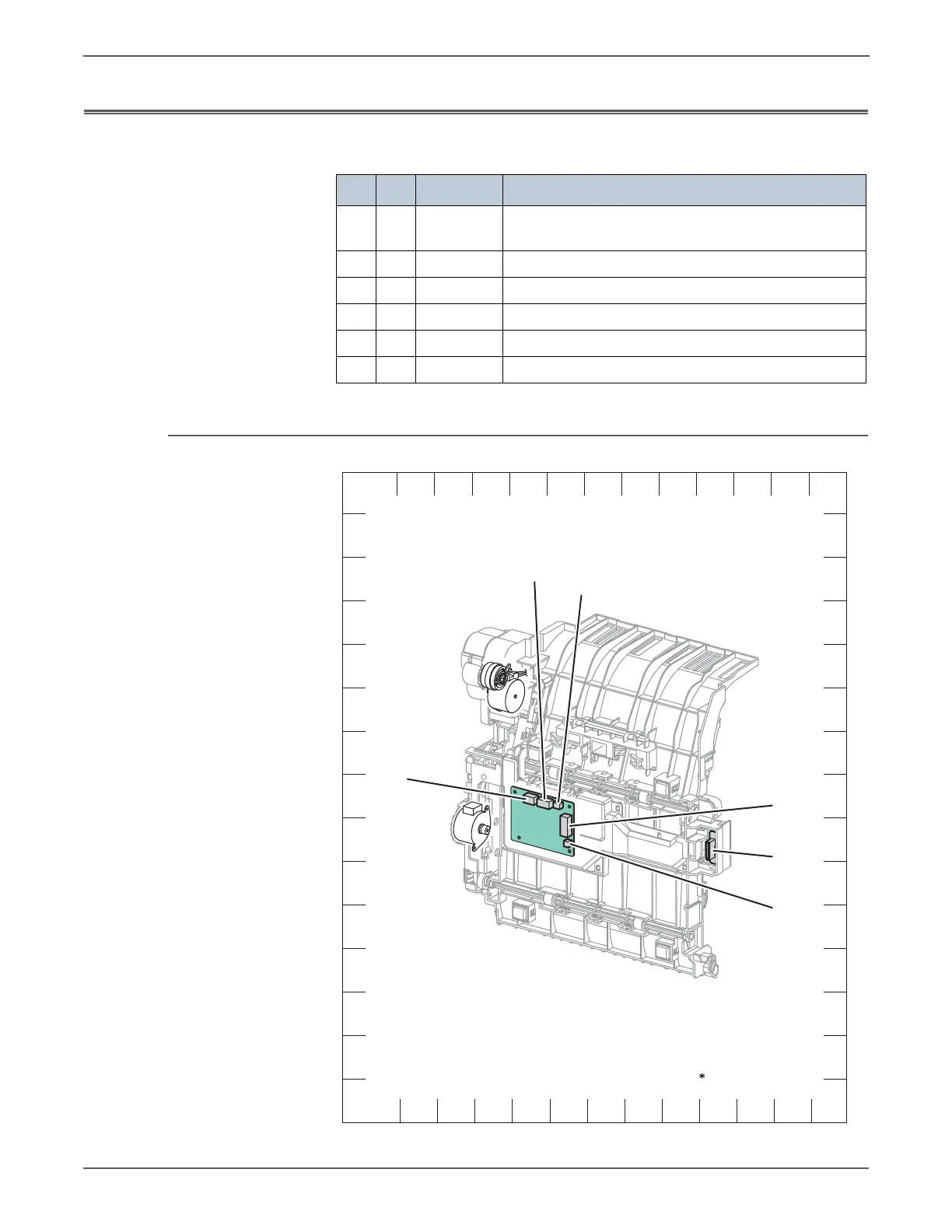

Duplex Unit Plug/Jack Designators & Locator Map
Map 11 - Duplex Unit
P/J Map Coordinates Remarks
272 11 I-169 Connects Duplex Unit (Harness Assy Dup) and Option
Harness
601 11 E-169 Connects Duplex Board and Harness Assy DUP
602 11 D-168 Connects Duplex Board and Exit Motor
603 11 D-168 Connects Duplex Board and Duplex Motor
604 11 E-168 Connects Duplex Board and Duplex Clutch
605 11 E-169 Not Connected
A
162
163
164
165
166
167
168
169
170
171
172
173
174
175
161
BCDEFGHIJ KL
s6500-429
603
604
601
272
605*
602
: Not Connected
