5-48 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Print-Quality Troubleshooting

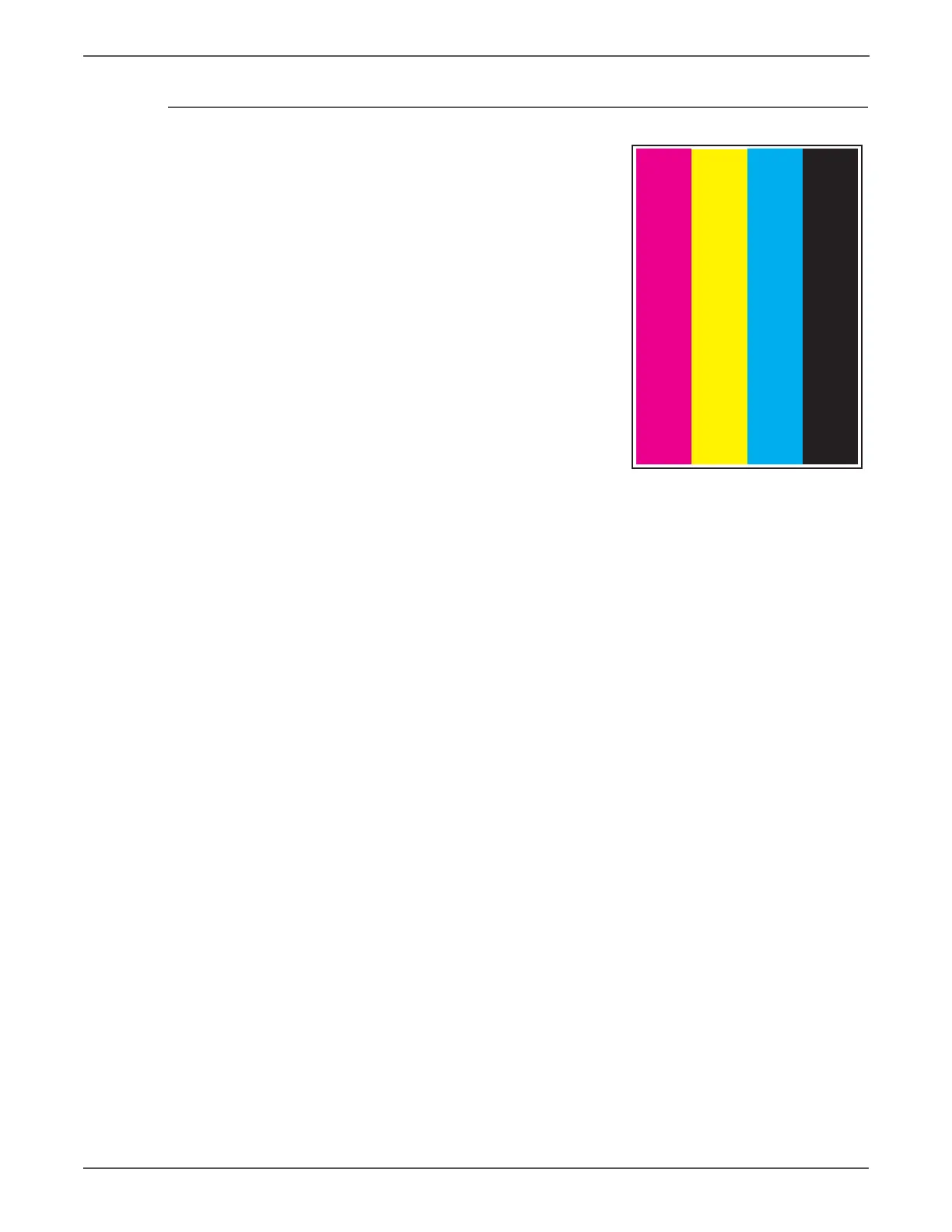

Toner Pallet Check Test Print
This test print provides 100% density for
Cyan, Magenta, Yellow, and Black on the
whole page. This test is used to identify
problems with the toner when printing
pictures or photos. Compare the print with
this example to determine the problem.
• Fail: Check the toner cartridge and
delivery for the problem color.
• Pass: Check the print data.
s6500-149
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
