Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-143
Service Parts Disassembly
MFP Fax Board
MFP PL8.1.5 (PWBA Fax)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-18).
4. Remove the Outer Pole Cover (page 8-39).
5. Remove the Rear Cover (page 8-20).
6. Remove the IP Board Shield (page 8-142).

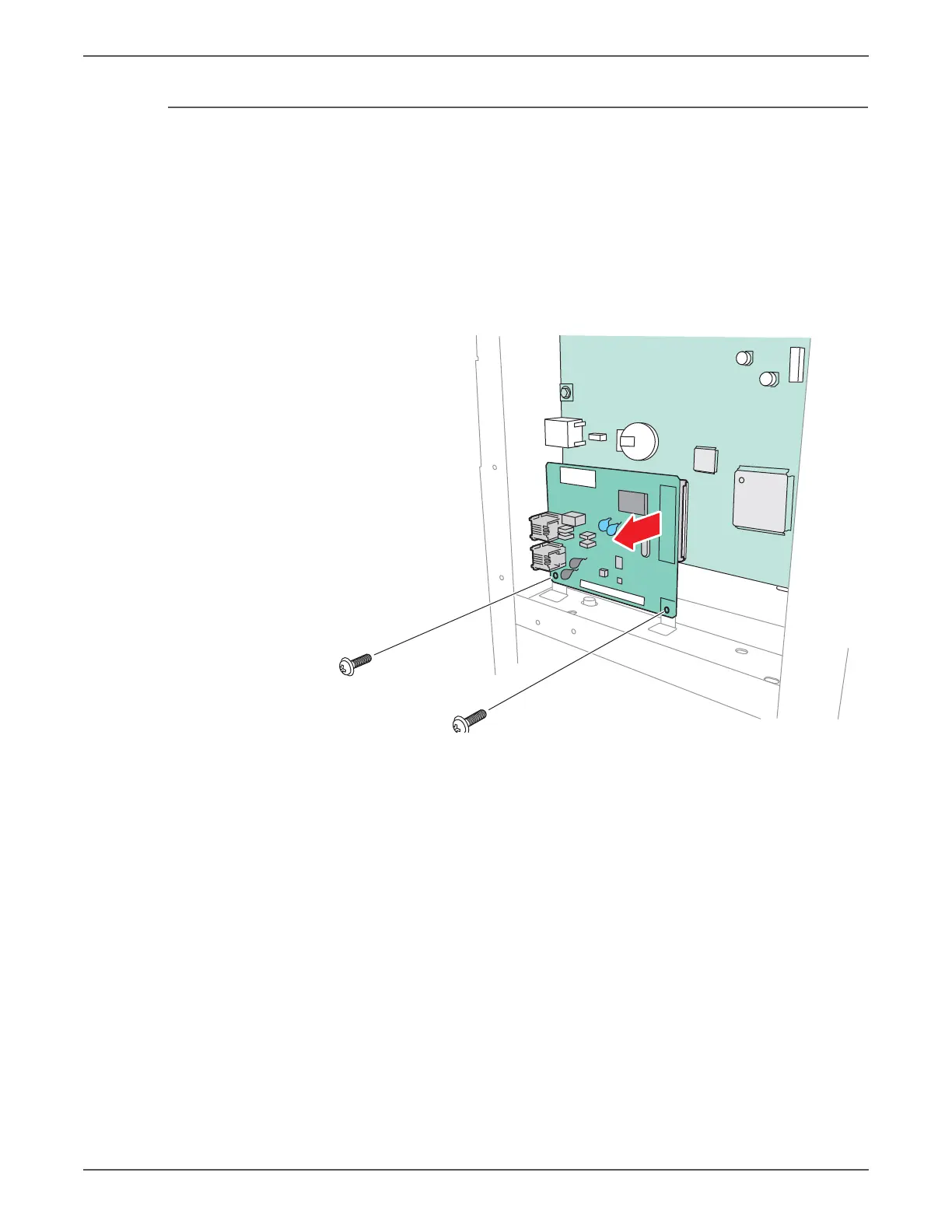

7. Remove two screws (silver, 6mm) that secure the board to the chassis.
8. Release the board from the connector on the Image Processor Board.
s6500-331

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
