Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-77
Service Parts Disassembly

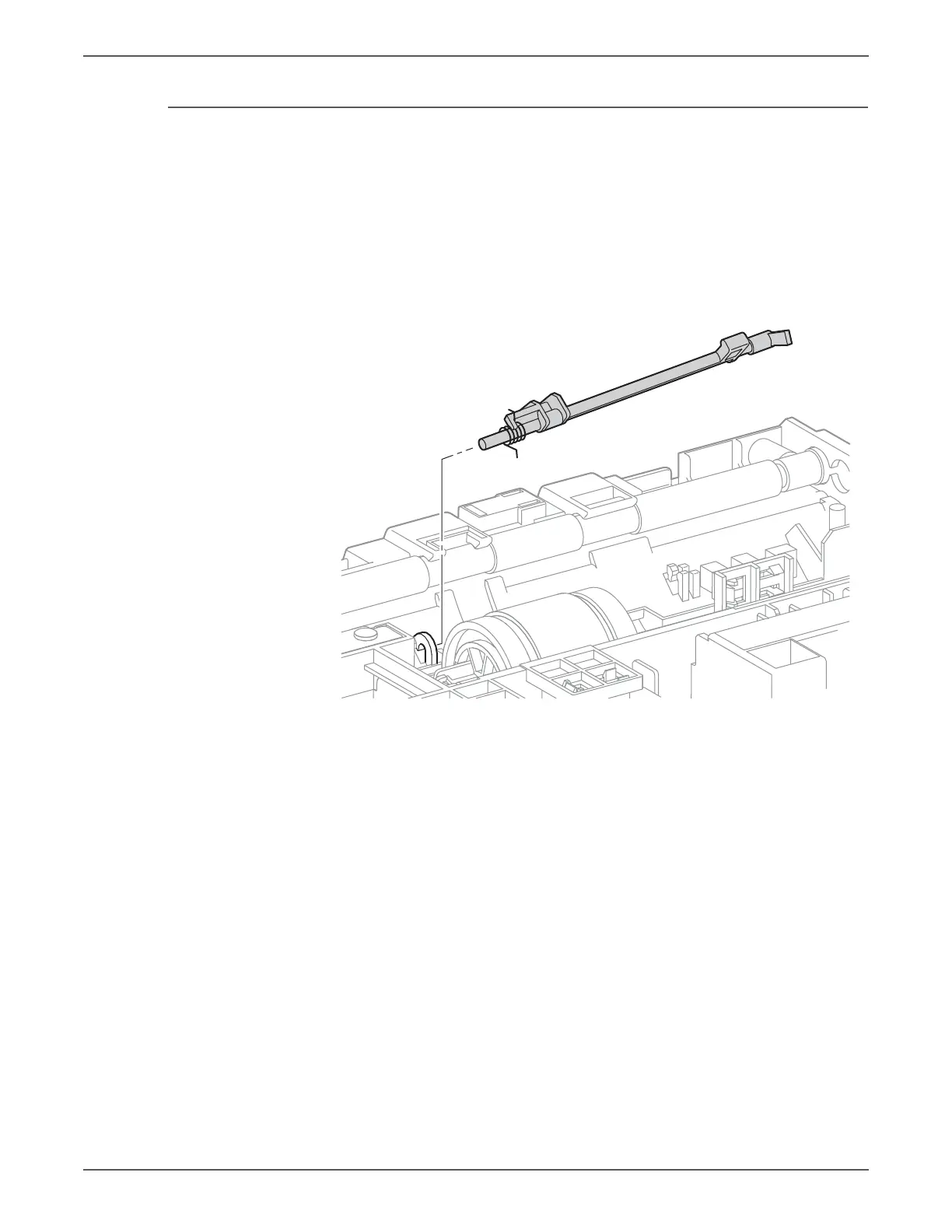

Registration Input Actuator
PL3.2.11 (Actuator Regi In)
Note
This procedure applies to both the SFP and MFP.
1. Remove the Upper Frame Assembly (SFP page 8-51; MFP page 8-67).
2. Remove the Registration Roller (page 8-75).
3. Release the left side of the Registration Input Actuator from the hook on the
Upper Feeder Chute.
4. Remove the actuator and spring by removing the right end of the shaft from
the hole of the Upper Feeder Chute.
5. Remove the spring from the Registration Input Actuator.
Replacement Note
Install the spring on the actuator before replacing the actuator in the feeder.
s6500-245
