Xerox WorkCentre 6505 Service Manual

2-24 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Theory of Operation
Optional Feeder
The Optional Feeder adds a second, 250-sheet input tray (Tray 2) to the printer.
• No Paper Sensor
Detects the presence/absence of paper in the Tray based on the position of
No Paper Actuator.
• Feed Solenoid
The Feed Solenoid, when activated, releases the gear on the Feed Roller shaft.
The gear engages with the feed roller drive to rotate the Feed Roller.
• Feed Roller
When the Feed Solenoid operates, it allows the Feed Roller to rotate and feed
the paper.
•Paper Path Sensor
Detects the leading edge as the media reaches the turn chute.
•Drive Clutch
Transmits drive from the Feed Motor to the rollers.
• Feed Motor
The Feed Motor drives the Turn Rollers.
• Feeder Board
The Feeder Board controls the motor, sensor and clutch of the optional feeder.

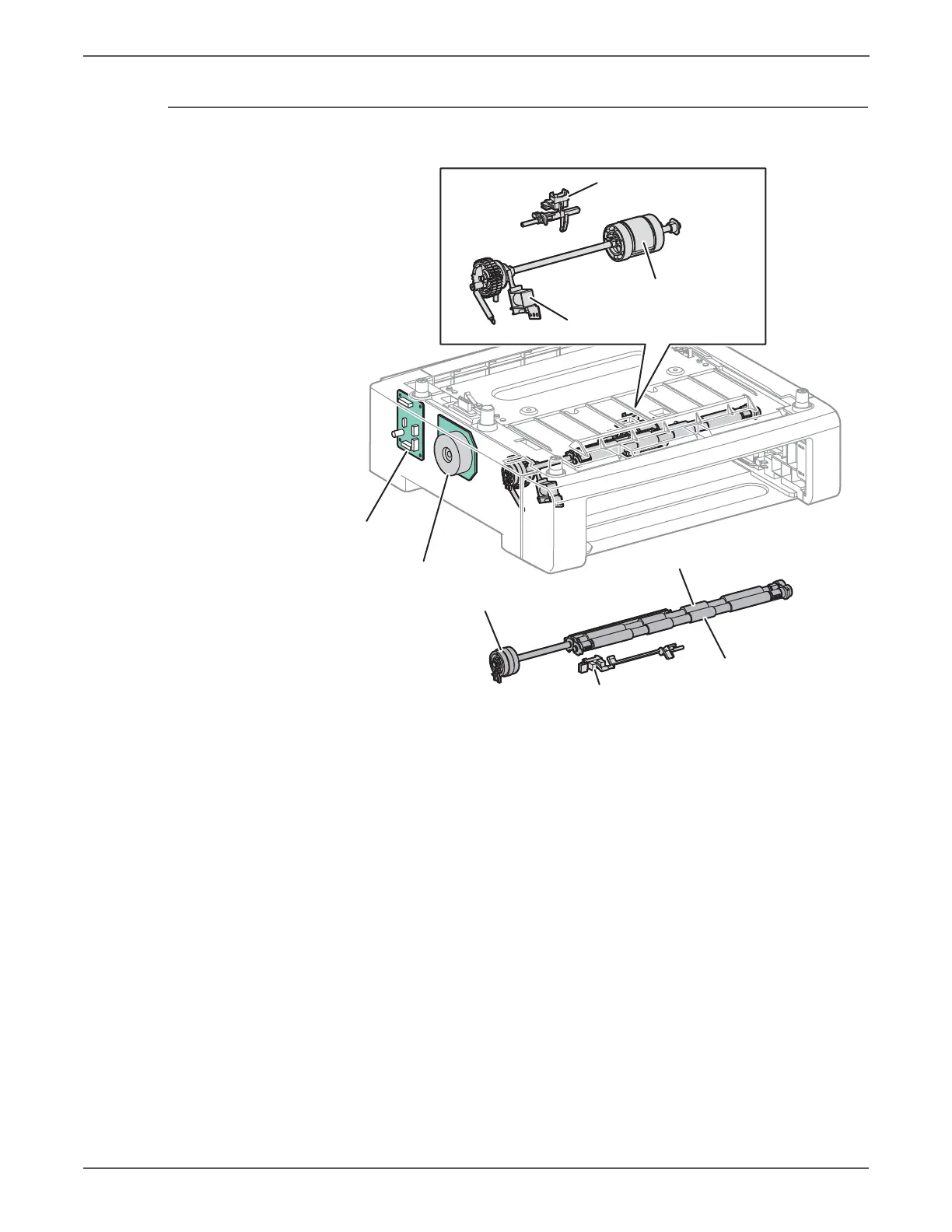

s6500-040
Tray 2 No Paper Sensor
Feed Roller
Feed Solenoid
Tray 2 Paper Path Sensor
Rubber Turn Roller
Metal Turn Roller
Turn Clutch
Feed Motor
Feeder Board
