Xerox WorkCentre 6505 Service Manual

4-58 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting
Scanner I/O Diagnostic Testing Procedures
Procedures for testing each IIT component using Service Diagnostics.
User Clear User Clear
■ (displays a list of
country)
■ Clears stored document data and
address information.
■ Initializes system data.
System Clear System Clear
■ (displays a list of
country)
■ Clears stored document data,
communication management
data, and history.
■ Initializes system data.
User & System
Clear
User & System Clear
■ (displays a list of
country)
■ Clears stored document data,
address information,
communication management
data, and history.
■ Initializes system data.
System Data
Init
System Data Init
■ (provides a list of
country)
■ Initializes system data in
accordance with the country
specified in Data1.
Document
Clear
Document Clear
■ Ready
■ Processing
■ Complete
■ Clears all stored data including
calling table, substitute queue.
Complete Exits the Fax/Scanner Diag menu.
Complete Complete? Exits the Service Diagnostic menu.

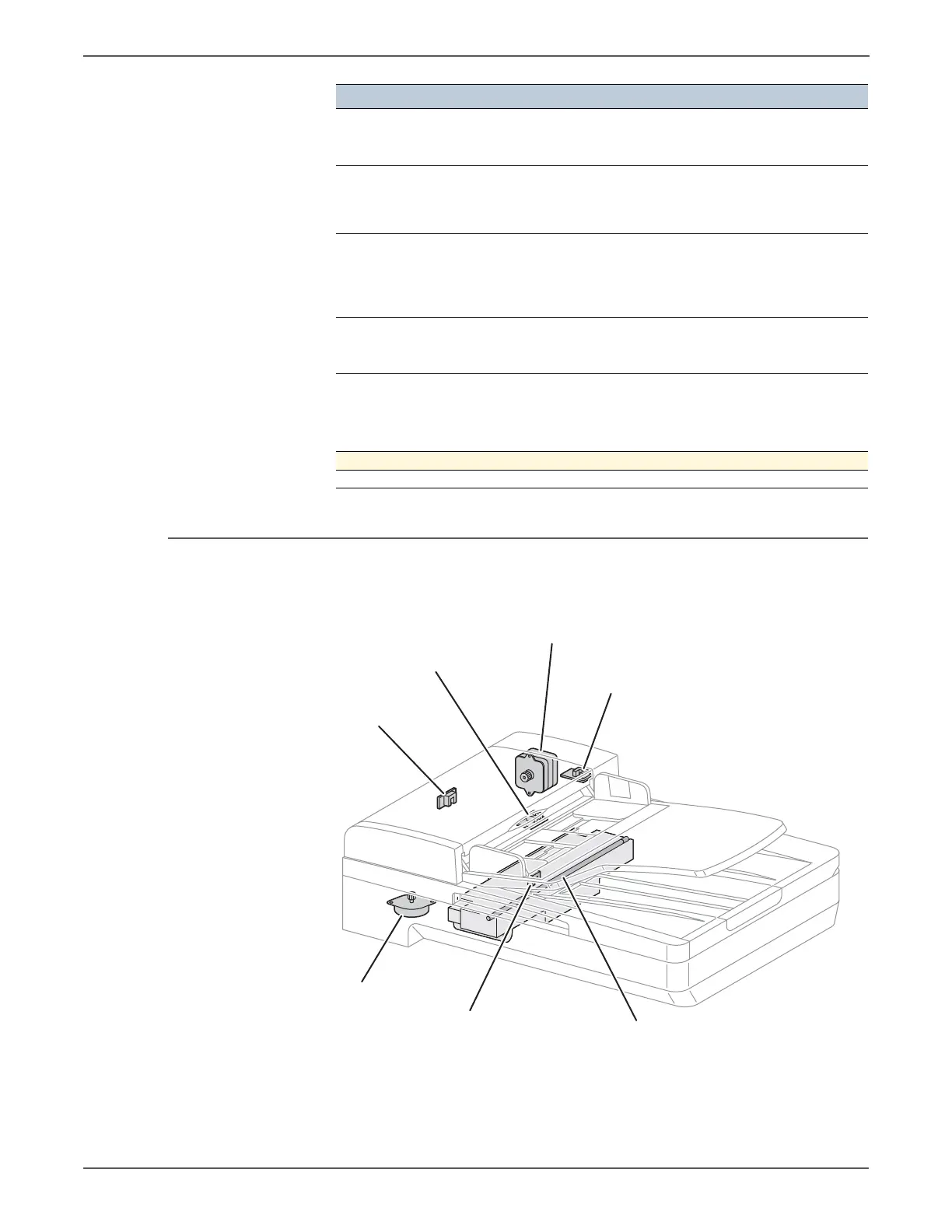

Test Control Panel Display Test Description
s6500-097
Home Position Sensor
Tray Sensor
Feed Sensor
ADF Cover Sensor
Scanner Motor
ADF Motor
Lamp
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
