Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 5-27
Print-Quality Troubleshooting
Repeating Bands, Lines, Marks, or Spots
There are recurring lines, marks, or spots on the page.
Initial Actions
• Check the paper transfer path.
• Ensure there are no debris on the transfer path.
Allow the Fuser to cool before starting the procedure.
20 Replace the Laser Unit (page 8-86).
Is the image printed correctly?
Complete Replace the
MCU Board
(page 8-138).
Troubleshooting Reference Table

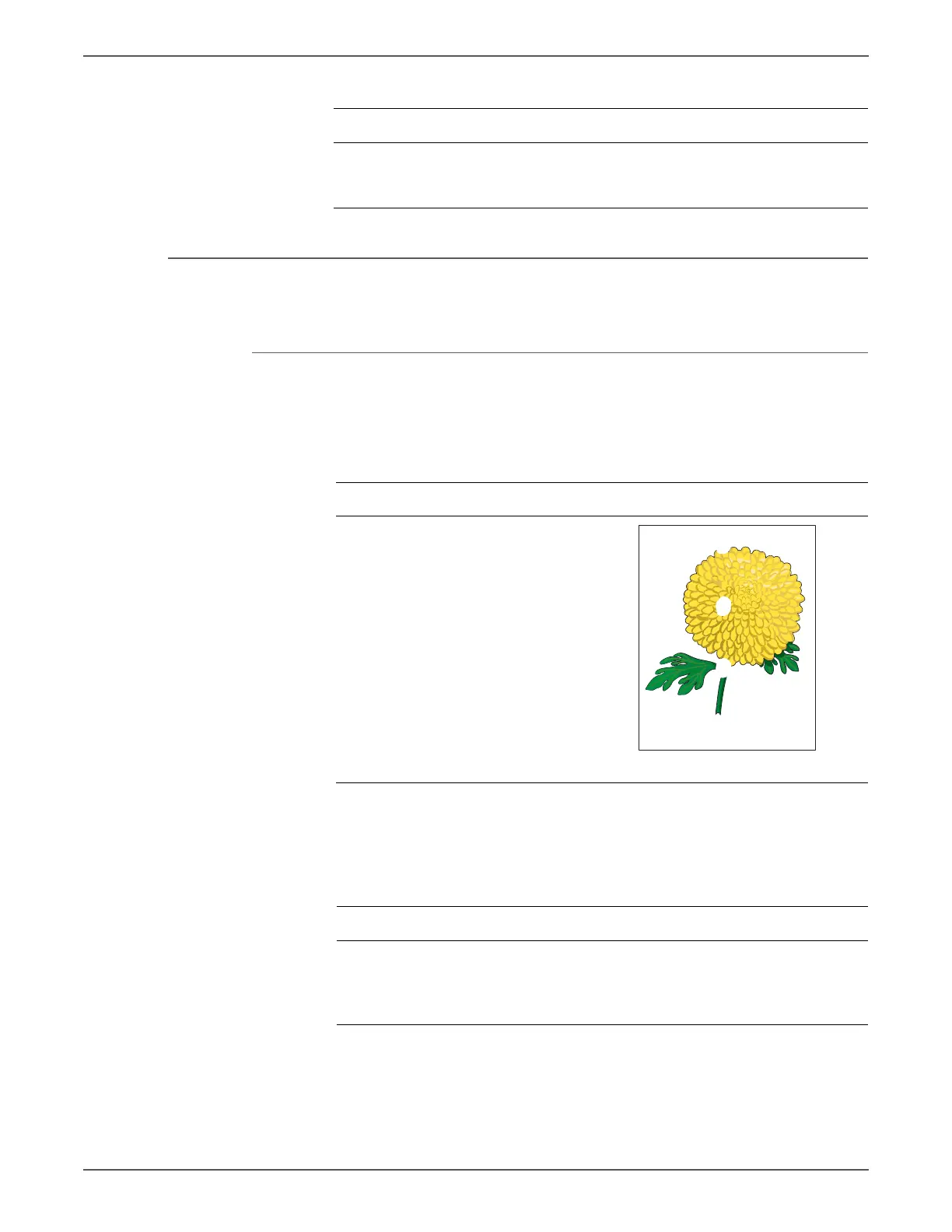

Applicable Notes Example Print
Laser Unit, PL4.1.99
Toner Cartridge K, PL5.1.21
Toner Cartridge C, PL5.1.22
Toner Cartridge M, PL5.1.23
Toner Cartridge Y, PL5.1.24
Fuser, PL6.1.1
Transfer Belt, PL6.1.7
Troubleshooting Procedure
Step Actions and Questions Yes No
1 Check for spot’s regular intervals. Do
spots, lines, or marks that might
appear on the page occur at regular
intervals?
Refer to “Pitch
Chart Test
Print” on
page 5-50.
Complete.
Troubleshooting Procedure (continued)
Step Actions and Questions Yes No
Repeating Defects

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
