Service Parts Disassembly
MFP Upper Frame Assembly
While this major procedure is not connected to a specific part or parts list, it is a
necessary pre-requisite for removing the HVPS or components of the Feeder
Assembly. As few parts as possible are removed from the upper assembly that will
allow the assemblies to separate.
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the MFP Left Side Cover (page 8-37).
4. Remove the Outer Pole Cover (page 8-39).
5. Remove the MFP Right Side Cover (page 8-40).
6. Remove Inner Pole Cover (page 8-44)
7. Remove the MFP Rear Cover (page 8-43).
8. Remove the MFP Top Cover (page 8-45).
9. Remove the Lower Scanner Cover (page 8-46).
10. Remove the LVPS Card Cage (page 8-64).
11. Remove the IIT Sub-assembly. (page 8-195)
12. Remove the Top Plate Assembly (page 8-59).
13. Remove the Inlet Chassis (page 8-63).
14. Remove the Drive Clutch and Bearing Kit (page 8-48).
15. Remove the Feed Drive Assy. (page 8-117)
16. Remove the Transfer Belt (page 8-112).

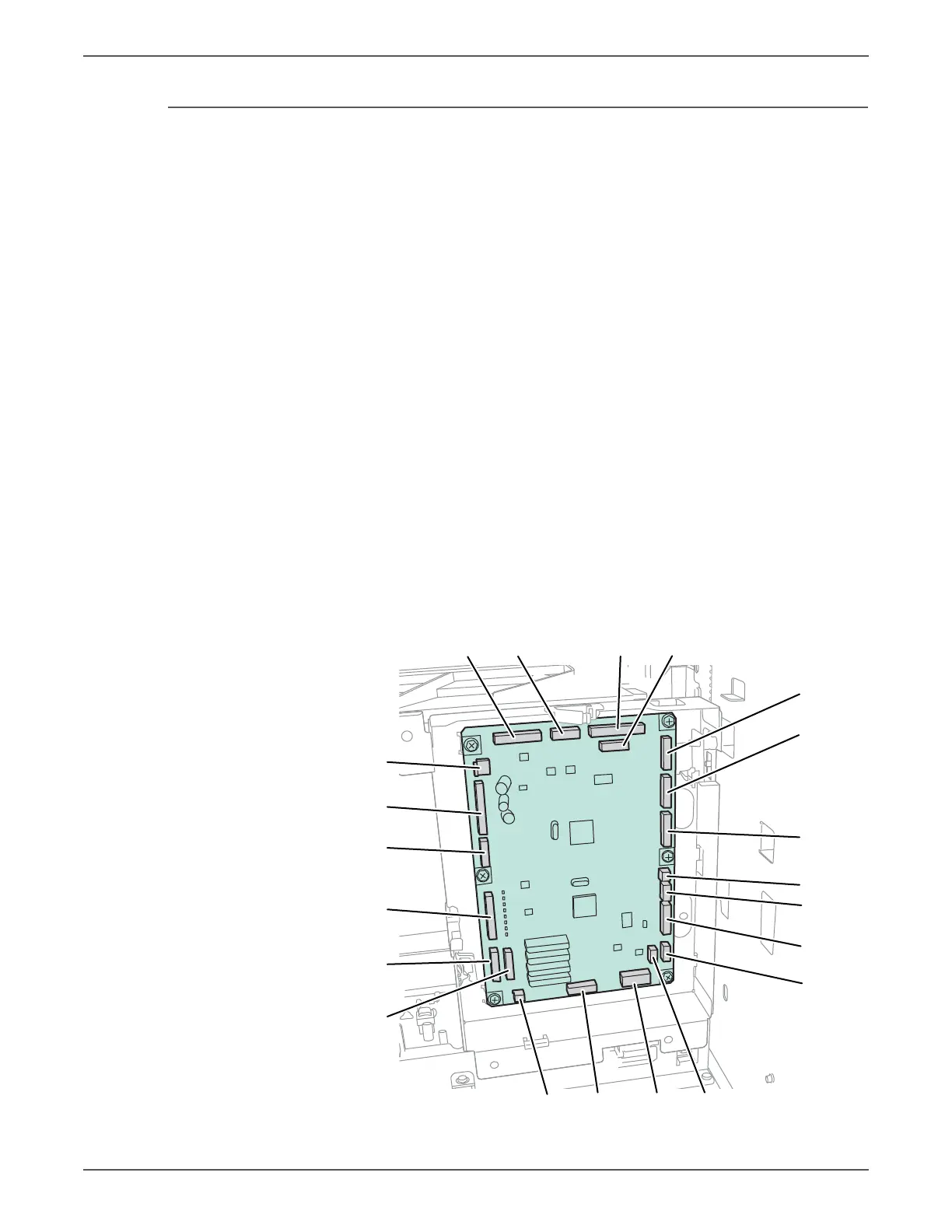

17. Unplug all connections to the MCU and EEPROM boards, then release the
harnesses from the clamps and guides on the MCU chassis.
s6500-344
