Xerox WorkCentre 6505 Service Manual

8-92 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
MFP Laser Unit
PL 4.1.99 (Kit ROS Assy)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-37).
4. Remove the Outer Pole Cover (page 8-39).
5. Remove the Right Side Cover (page 8-40).
6. Remove the Rear Cover (page 8-43).
7. Remove the IP Board Shield (page 8-142).
8. Remove the Inner Pole Cover (page 8-44).
9. Remove the Lower Scanner Cover (page 8-46).
10. Remove the Top Cover (page 8-45).
11. Remove the LVPS Card Cage (page 8-64).
12. Remove the Top Plate Assembly (page 8-59).

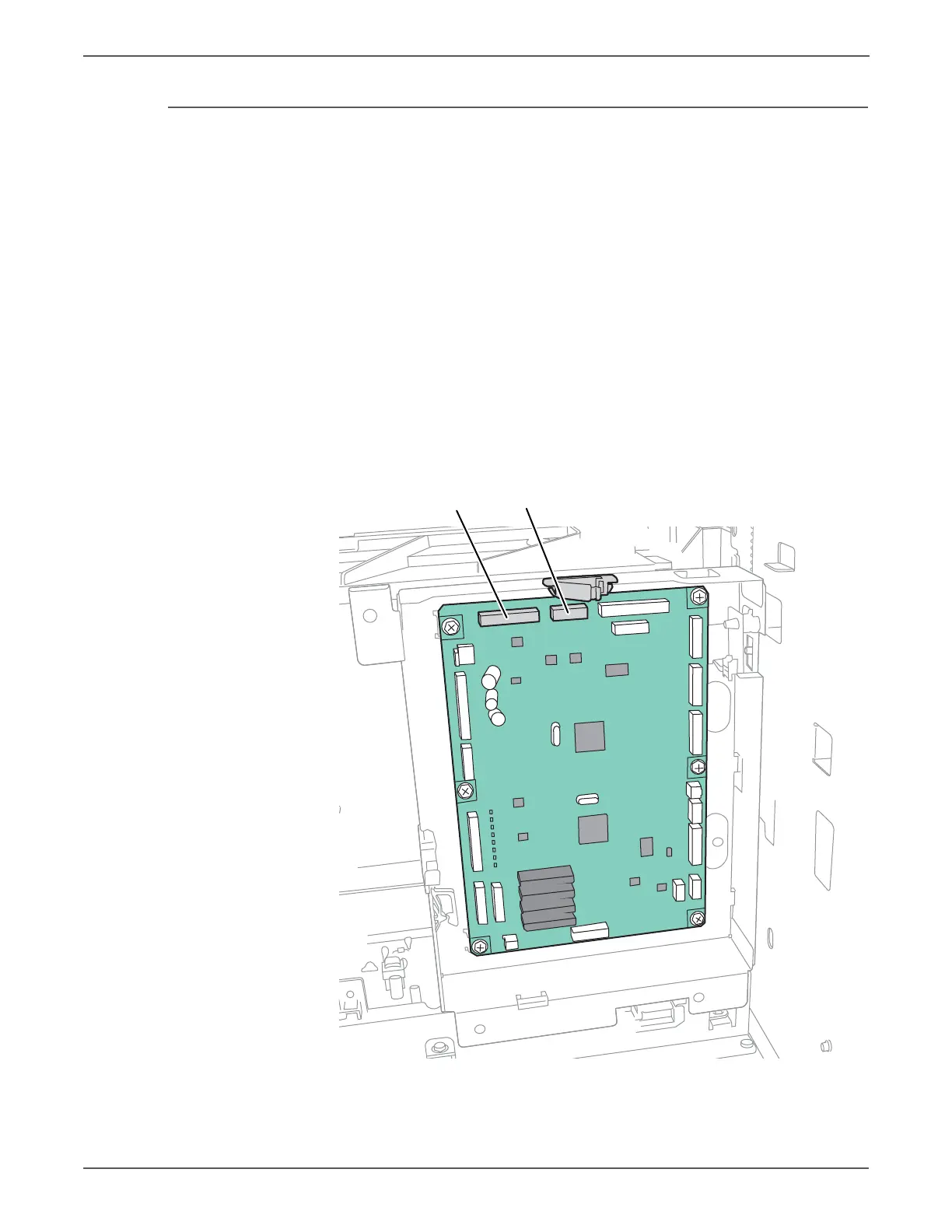

13. Disconnect P/J40 and P/J41 from the MCU Board and release the harnesses
from the edge saddle.
s6500-273
P/J41
P/J40
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
