Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-97
Service Parts Disassembly
Erase LED Assembly
PL4.1.8 (LED Assy Erase)
Note
Although the illustrations for this procedure show the SFP, the details for
removing the Erase LED Assembly are the same for the MFP.
1. Perform the service preparation steps on page 8-3.
2. Remove the Right Side Cover (SFP, page 8-17; MFP, page 8-40).
3. Remove the two screws (silver, tap, 8mm) that secure the Erase LED Assembly
to the chassis.
4. Disconnect P/J141 to remove the Erase LED Assembly.

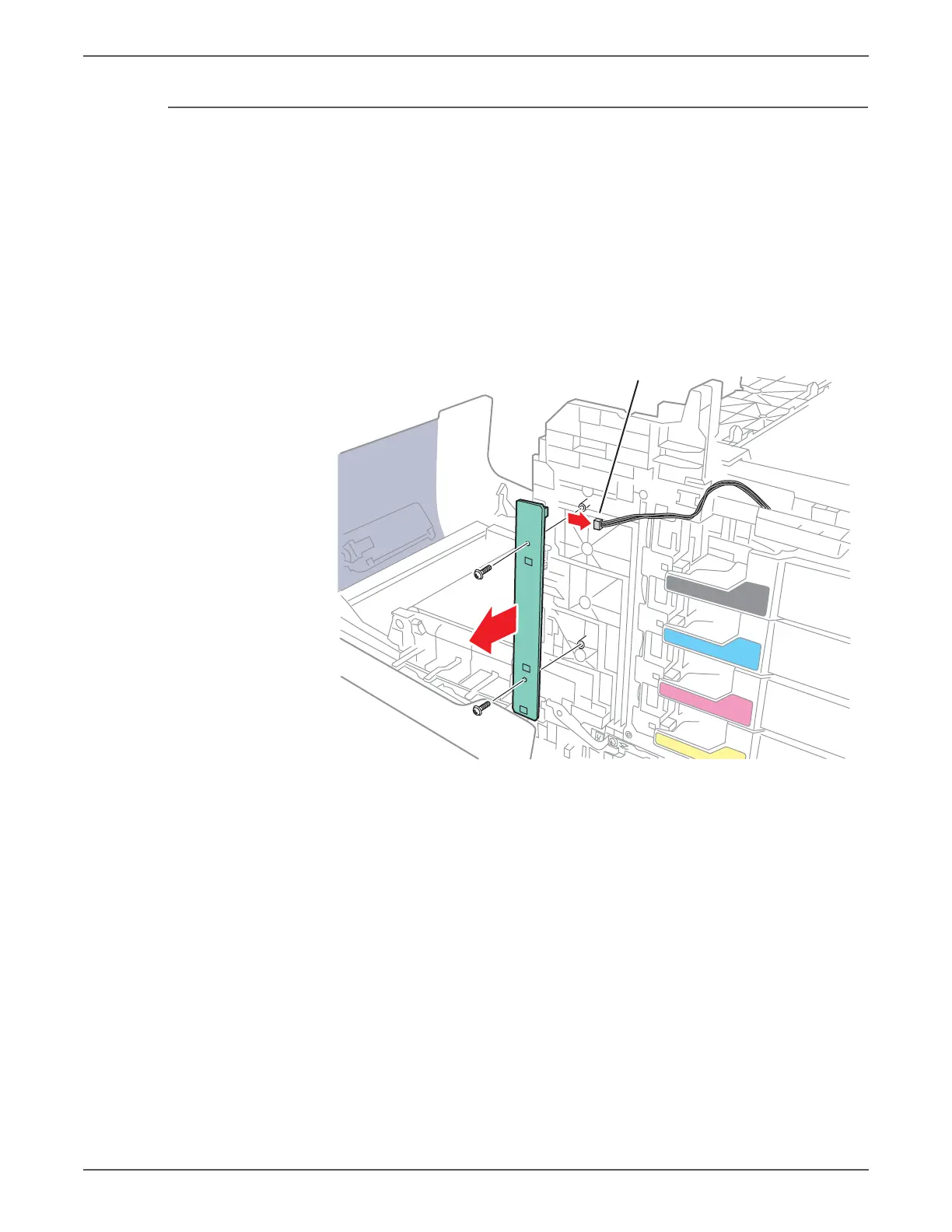

s6500-279
P/J141

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
