8-96 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

Service Parts Disassembly

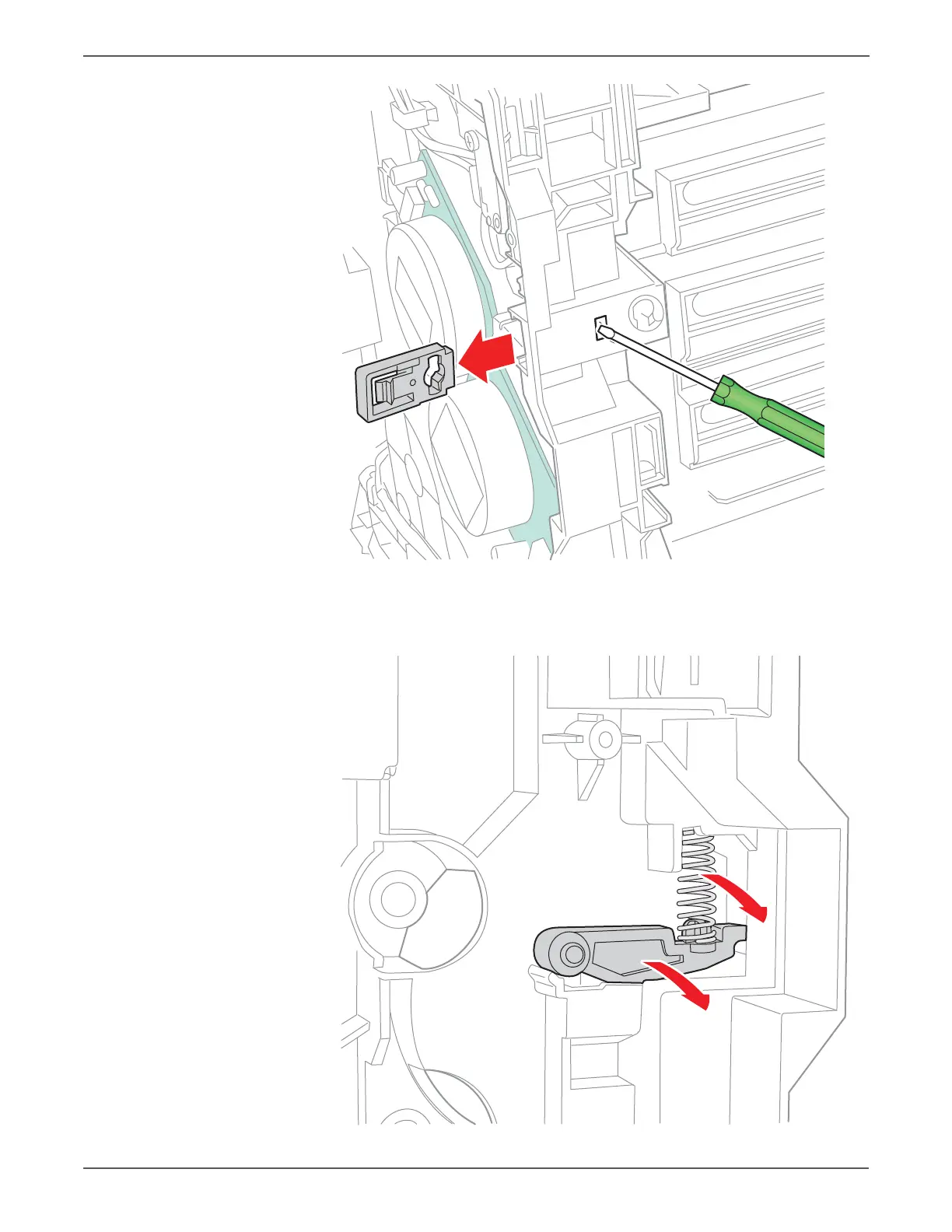

5. Remove the Imaging Unit Restraint Block.

6. Remove the Imaging Unit Spring.

7. Rotate the Imaging Unit Lever slightly and remove it.

s6500-277
