Xerox WorkCentre 6505 Service Manual

4-40 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting
Duplex Clutch
The Duplex clutch engages drive to the rollers. To test the clutch:
Note
Close the Interlock Switch to provide power to the device under test.
1. Enter Service Diagnostics (page 4-8).
2. Run the Duplex Clutch test: Engine Diag > Motor Test > Duplex Clutch.
A click is heard when the clutch is energized.To test the clutch and the duplex exit
motor:
1. Enter Service Diagnostics (page 4-8).
2. Open the Front Cover.
3. Run the Exit Motor Full2 test: Engine Diag > Motor Test > Exit Motor Full2.
4. While the motor is running, press the Up arrow to find Duplex Clutch. Press
OK to run the test.

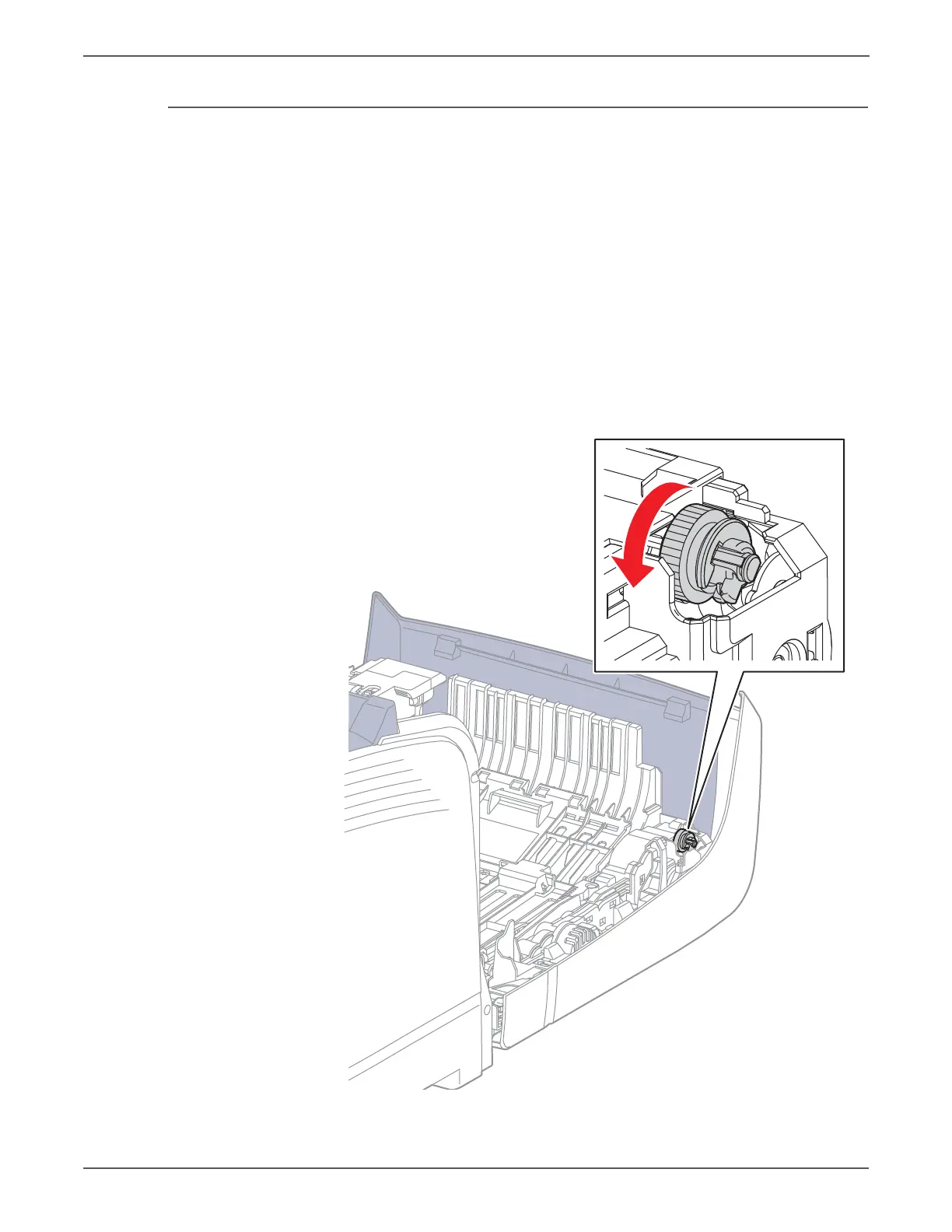

5. Check that the gear is rotating
.
6. Press Cancel to stop the test.
7. Press the Down arrow to find Exit Motor Full2 and Cancel the test.
s6500-127
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
