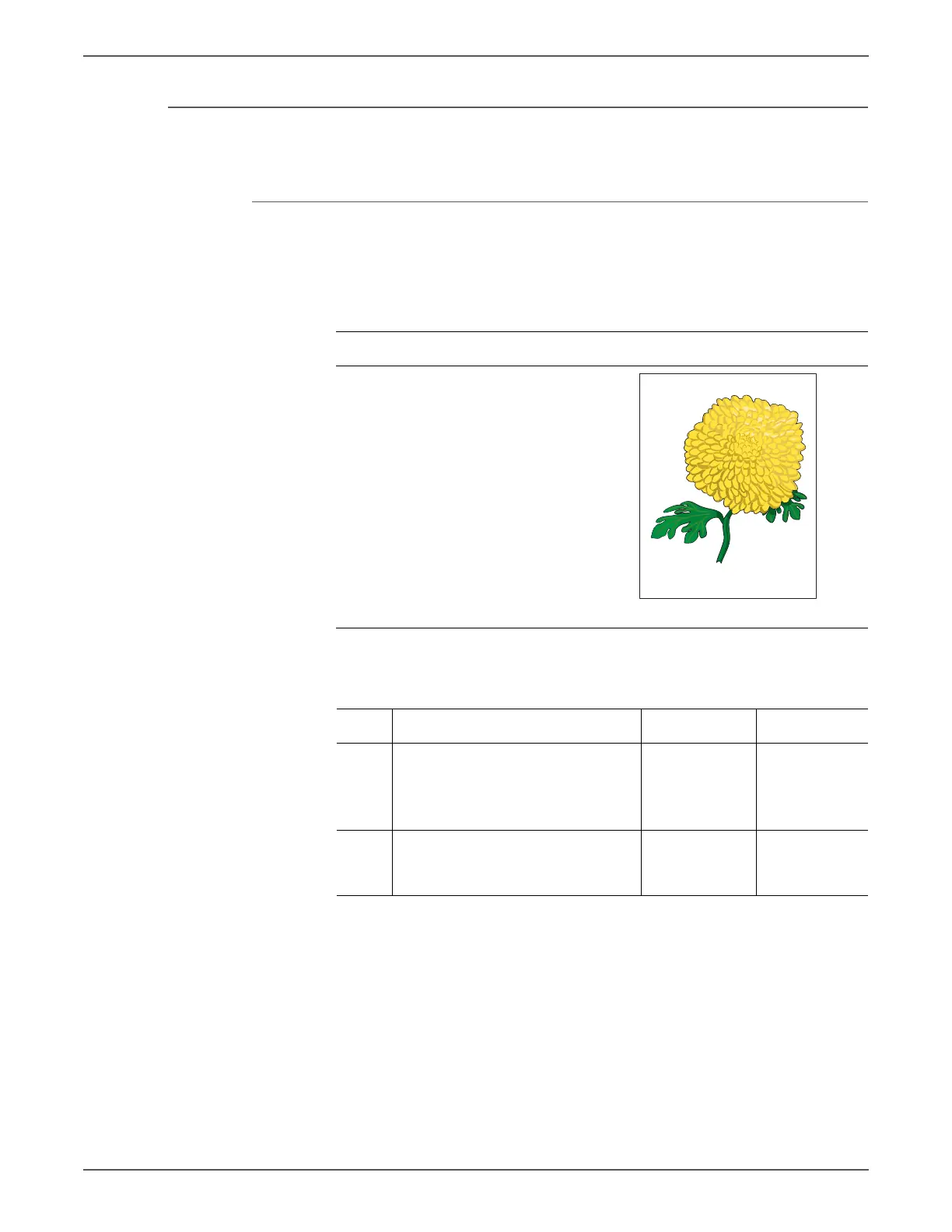

Print-Quality Troubleshooting
Wavy Lines
The printed image has wavy column line in the direction of the paper travel.
Initial Actions
• Check the ADF media path for dirt or debris.
• Check the ADF media transport components.
Troubleshooting Reference Table
Applicable Parts Example Print
ADF Scanner Assembly, PL11.1.1
Troubleshooting Procedure
Step Actions and Questions Yes No
1 1. Check the media condition.
2. Is the media the recommended
type, loaded in the correct
position, and meet specifications?
Go to step 2. Replace the
paper or use
the document
glass mode.
2 Is the ADF closed against the
document glass completely?
Replace the IIT
Sub-Assembly
(page 8-195).
Close the ADF.
Hunting

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
