Xerox WorkCentre 6505 Service Manual

8-126 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

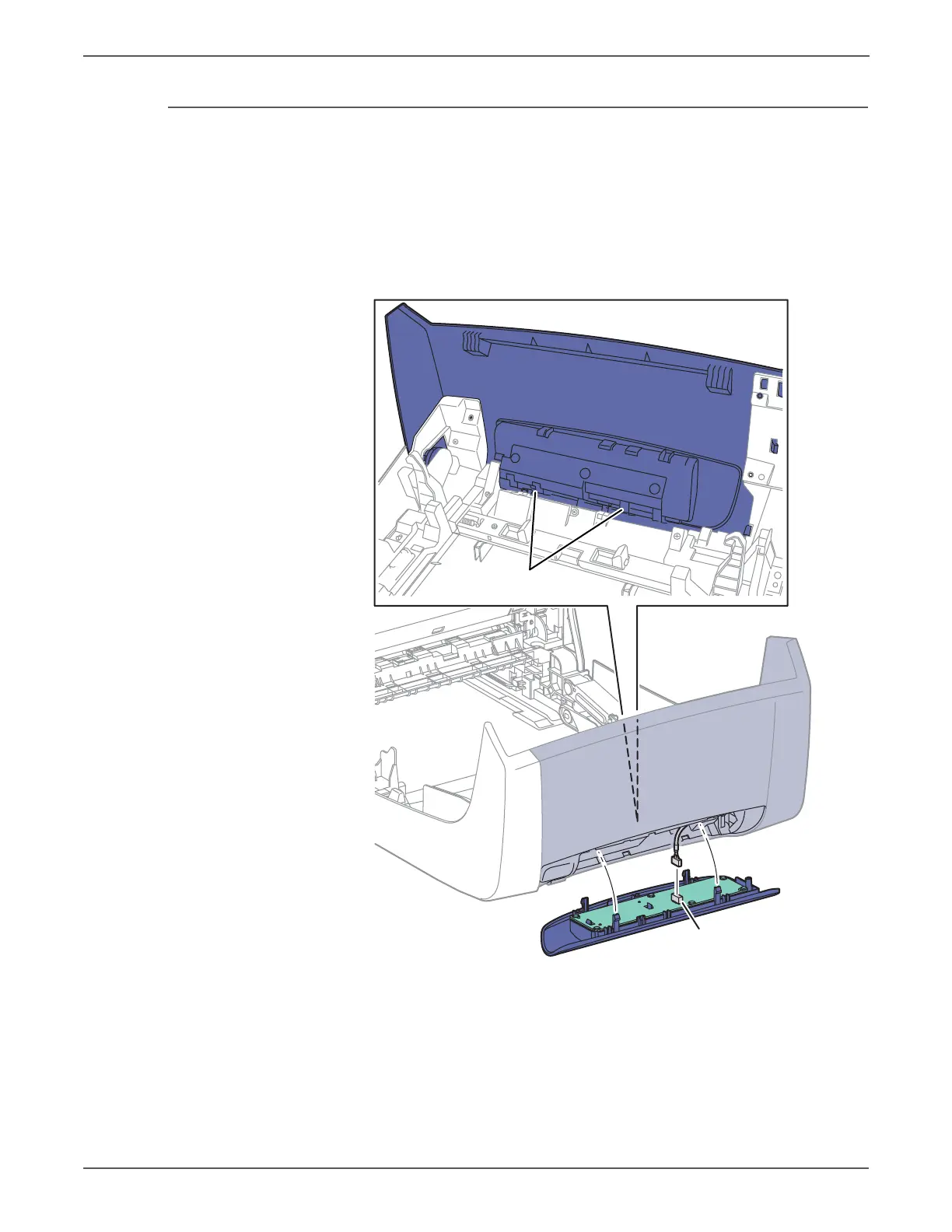

SFP Control Panel
SFP PL1.2.3 (Console Assy Panel)
1. Turn Off power and disconnect the power cord from the wall outlet.
2. Open the Front Cover.
3. Remove Duplex Unit if installed (page 8-162).
4. Release two hooks that secure the Control Panel to the Front Cover.
5. Disconnect P/J202 to release the Control Panel from the Front Cover.
Replacement Note
Make sure the wire harness is seated in the slot through the stiffener rib in the
Front Cover. If the harness is not properly seated in the slot, it could be
pinched by the Control Panel.
s6500-311
P/J202
Hooks
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
