Xerox WorkCentre 6505 Service Manual

8-170 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Option Chute Cover
Note
Although the illustrations for this procedure show the SFP Optional Feeder, the
details for removing the Chute Cover are the same for the MFP Optional
Feeder.
PL12.1.5
1. Remove the Optional Feeder (page 8-167).
2. Remove the Tray.

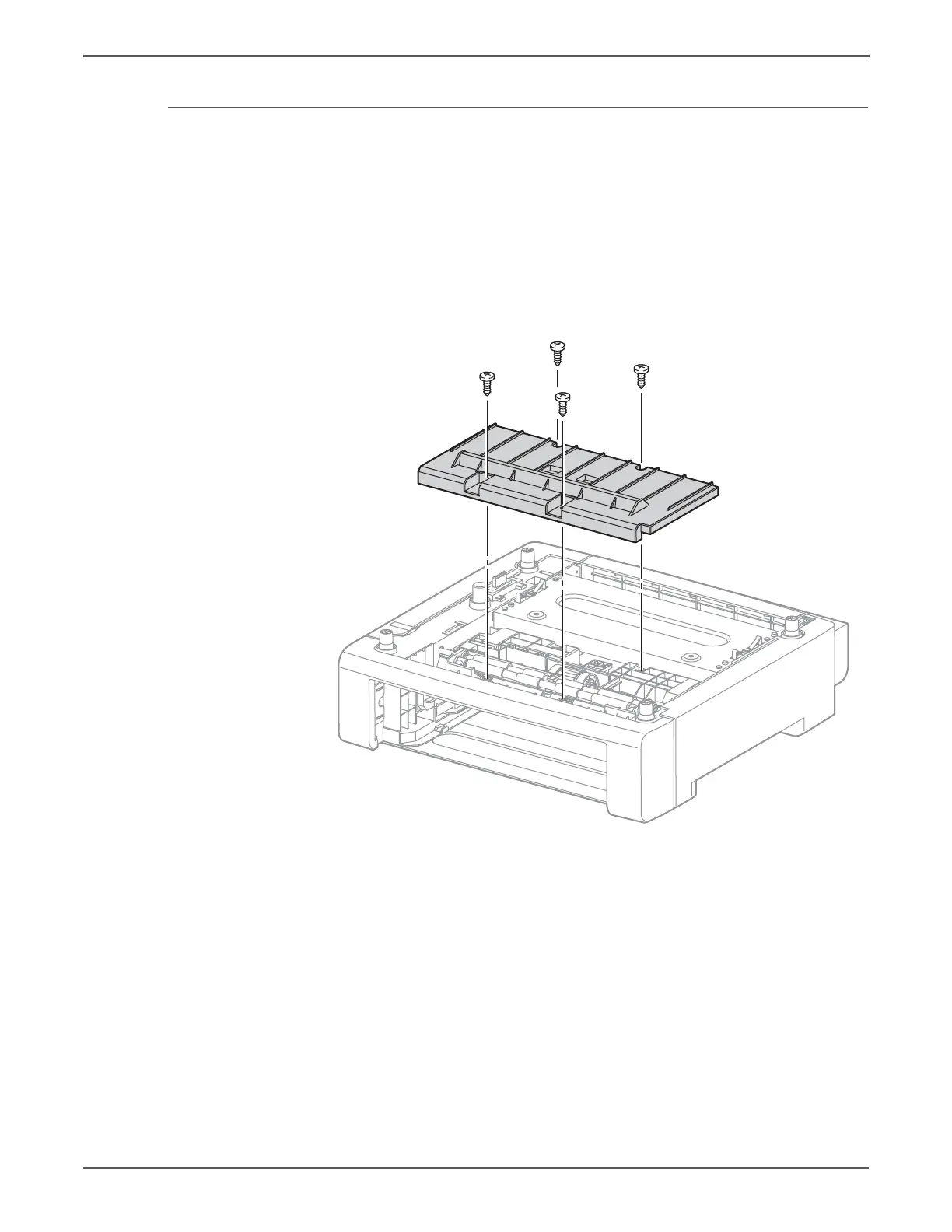

3. Remove four screws that secure the Chute Cover.
s6500-352
