Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 1-27
General Information
Mounting Surface Specifications
Mounting surface flatness must be within the specified range.
The printer must not be tipped or tilted more than 7 mm.
Failure to adhere to the specified mounting specifications will void all guarantees
of print-quality and/or performance. Known problems that can occur as a result of
exceeding the mounting surface specifications are:
• Color-to-Color mis-registration, primarily in the horizontal (laser scan)
direction.
• A smear or line of toner approximately 40 mm from the trailing edge of the
print.

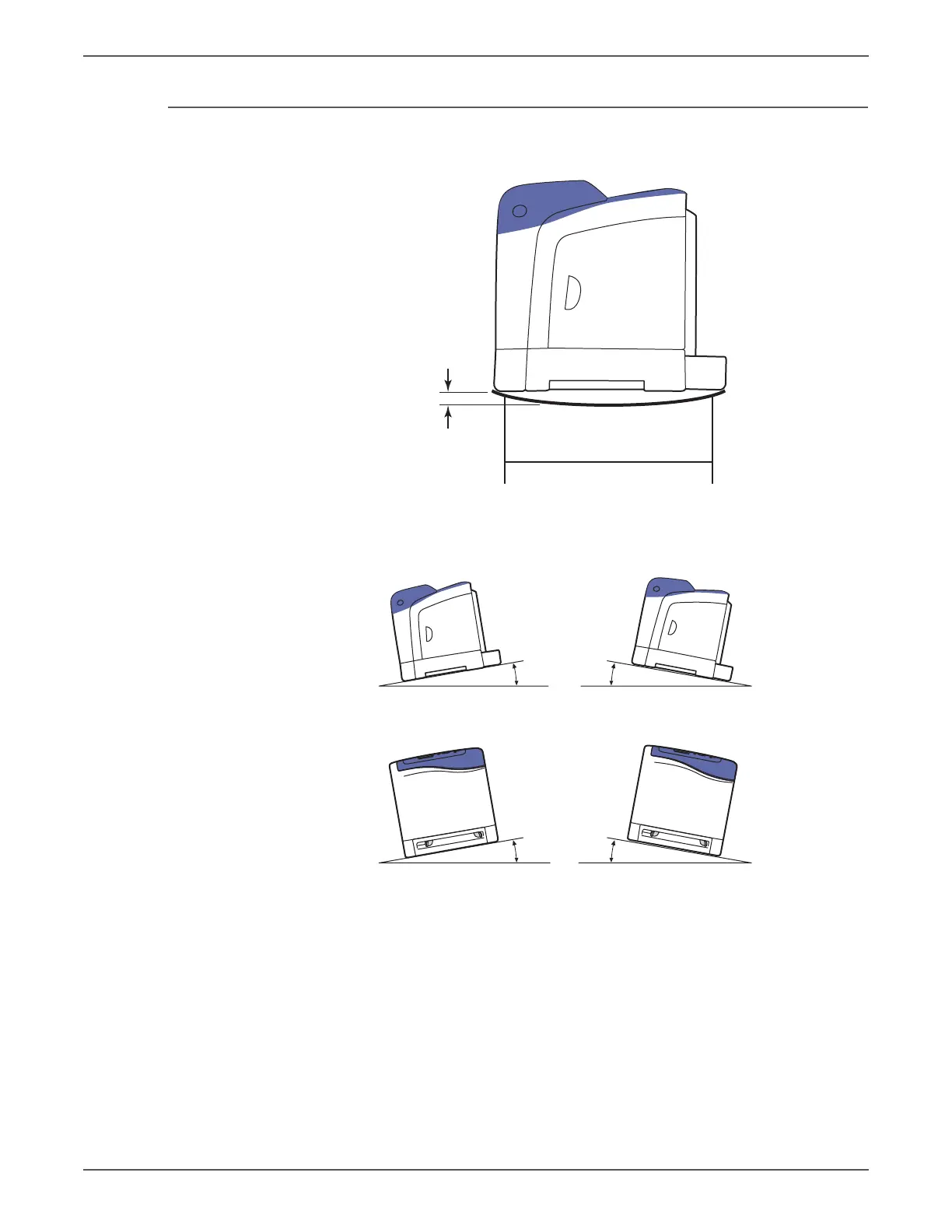

Right Hand Side
s6500-016
5mm Max
s6500-017
10° or 7 mm
10° or 7 mm

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
