Xerox WorkCentre 6505 Service Manual

8-130 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
SFP Humidity Sensor
SFP PL8.2.7 (Sensor HUM)
1. Turn Off power and disconnect the power cord from the wall outlet.
2. Open the Front Cover.
3. Remove the Top Cover (page 8-15).
4. Remove the Left Side Cover (page 8-18).
5. Remove the screw (silver, tap, 8mm) that secures the Humidity Sensor to the
chassis.
6. Unplug the connector (P/J201) and remove the sensor.

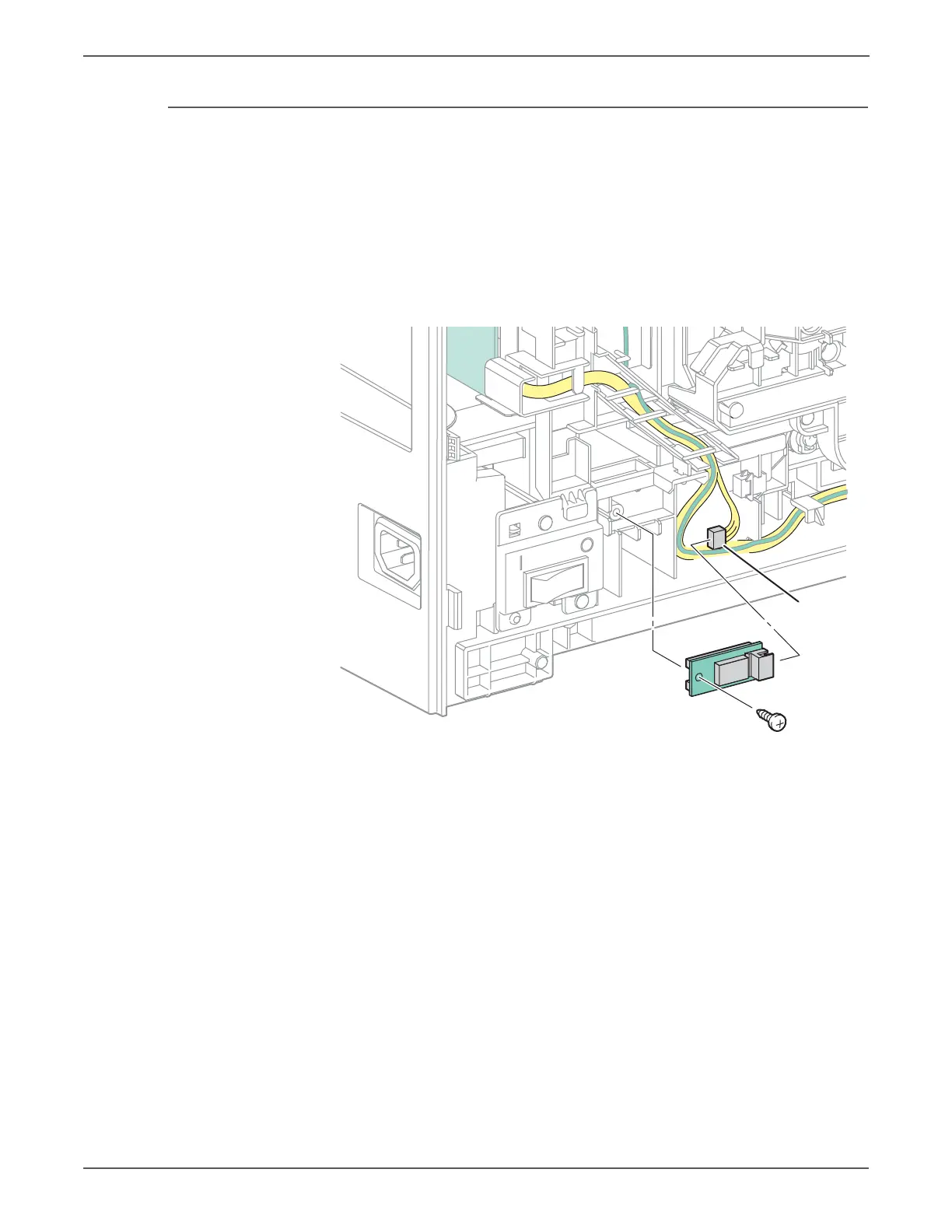

s6500-313
P/J201
http://www.manuals4you.com
