8-176 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Option Feed Solenoid Kit
PL3.1.99
1. Remove the Optional Feeder (page 8-167).
2. Remove the Front Cover (page 8-168).
3. Remove the Left Side Cover (page 8-169).
4. Remove the Drive Clutch (page 8-174).
5. Remove the Feed Gear Kit (page 8-178).
6. Remove the Feed Gear Assembly and spring (page 8-175).
7. Disconnect P/J4213 from the Option Harness.

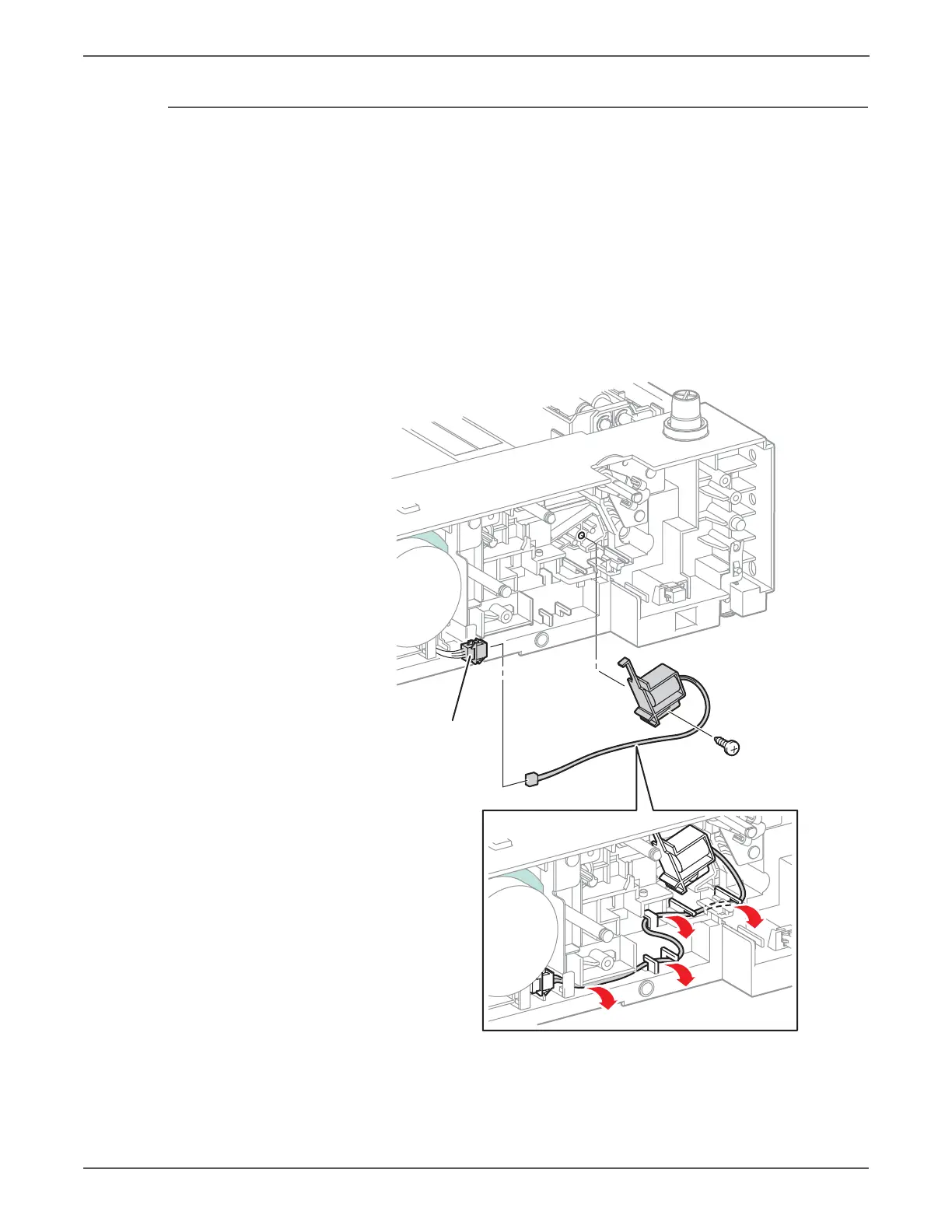

8. Remove the screw (silver, tap, 8mm) that secures the solenoid and remove the
solenoid.
s6500-359
P/J4213
