Xerox WorkCentre 6505 Service Manual

8-78 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Manual Feed No Paper Sensor
PL3.2.13 (Sensor Photo)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Lower the Transfer Belt.

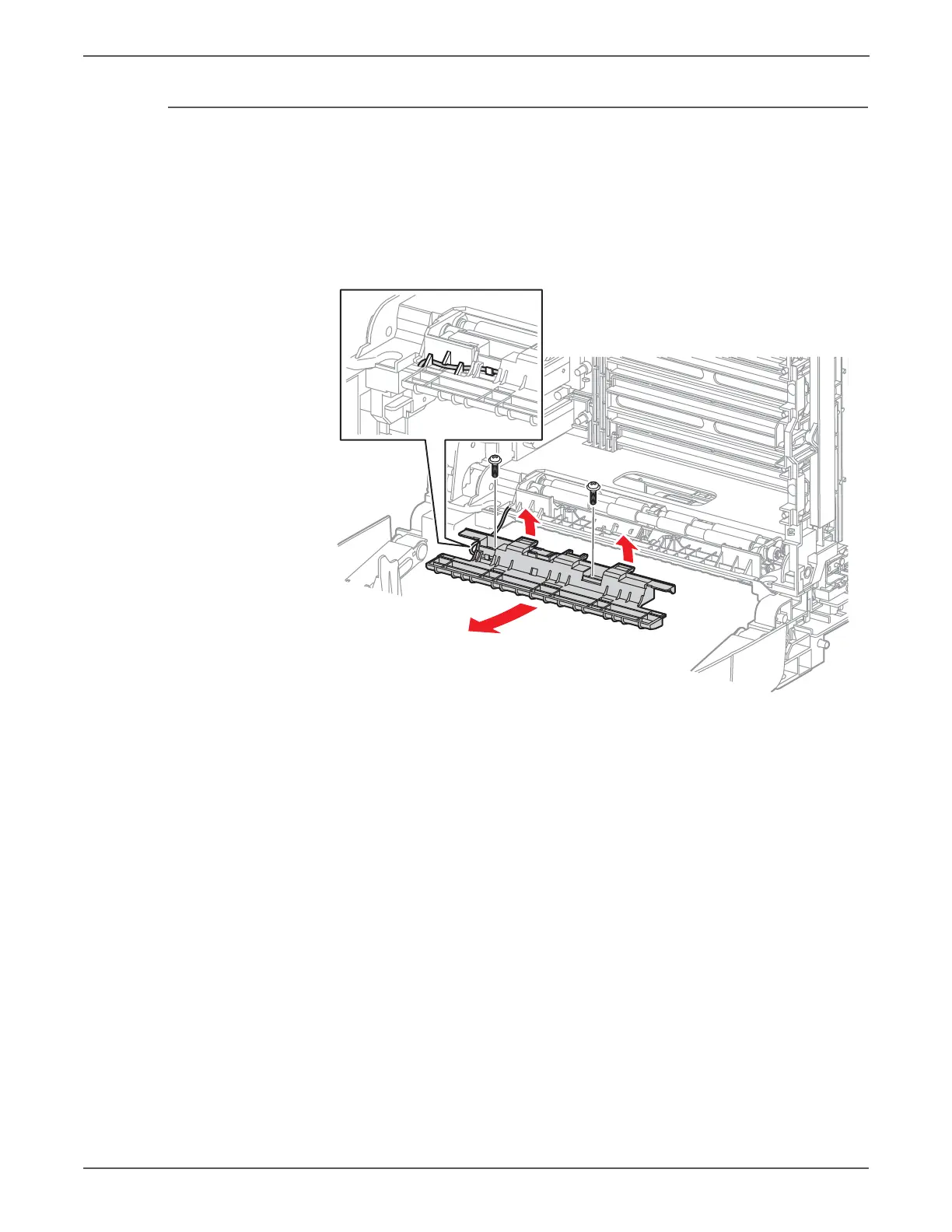

4. Remove two screws (silver, tap, 8mm) that secure the bracket.
5. Lift the bracket to release 2 bosses that align the bracket in the chute.
6. Raise and latch the Transfer Belt and remove the bracket.
7. Release 3 hooks that secure the sensor to the bracket. Release the harness
wires from the restraint on the bracket and set the bracket aside.
8. Unplug the sensor from the harness connector (P/J233).
Replacement Note
When installing a new sensor:
1. Plug the sensor into the harness connector.
2. Install the sensor into the bracket. Tip: insert the end hook first, then
snap the side hooks in place.
3. Route the harness wires into the restraint in the bracket.
4. Set the bracket in place and secure it with the two screws.
s6500-246
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
