8-14 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

Service Parts Disassembly

ADF Separator Pad

MFP PL 10.1.98 (ADF Feed Roll & Separator Roll Kit)

1. Open the ADF Jam Cover.

2. Remove the ADF Feed Roll Assembly (page 8-13).

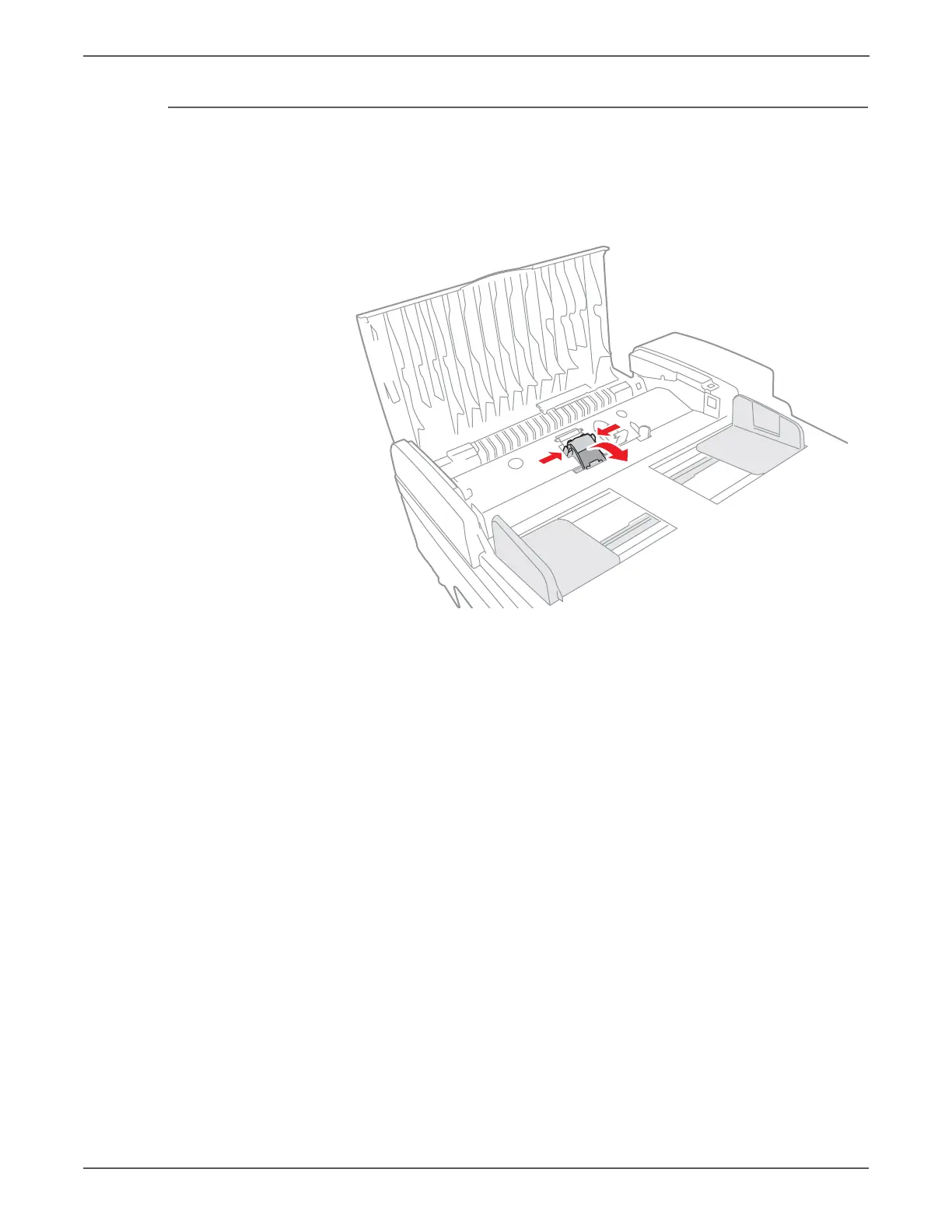

3. Squeeze the tabs inward to release the ADF Separator Pad from the chassis.

s6500-183
