Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-187
Service Parts Disassembly

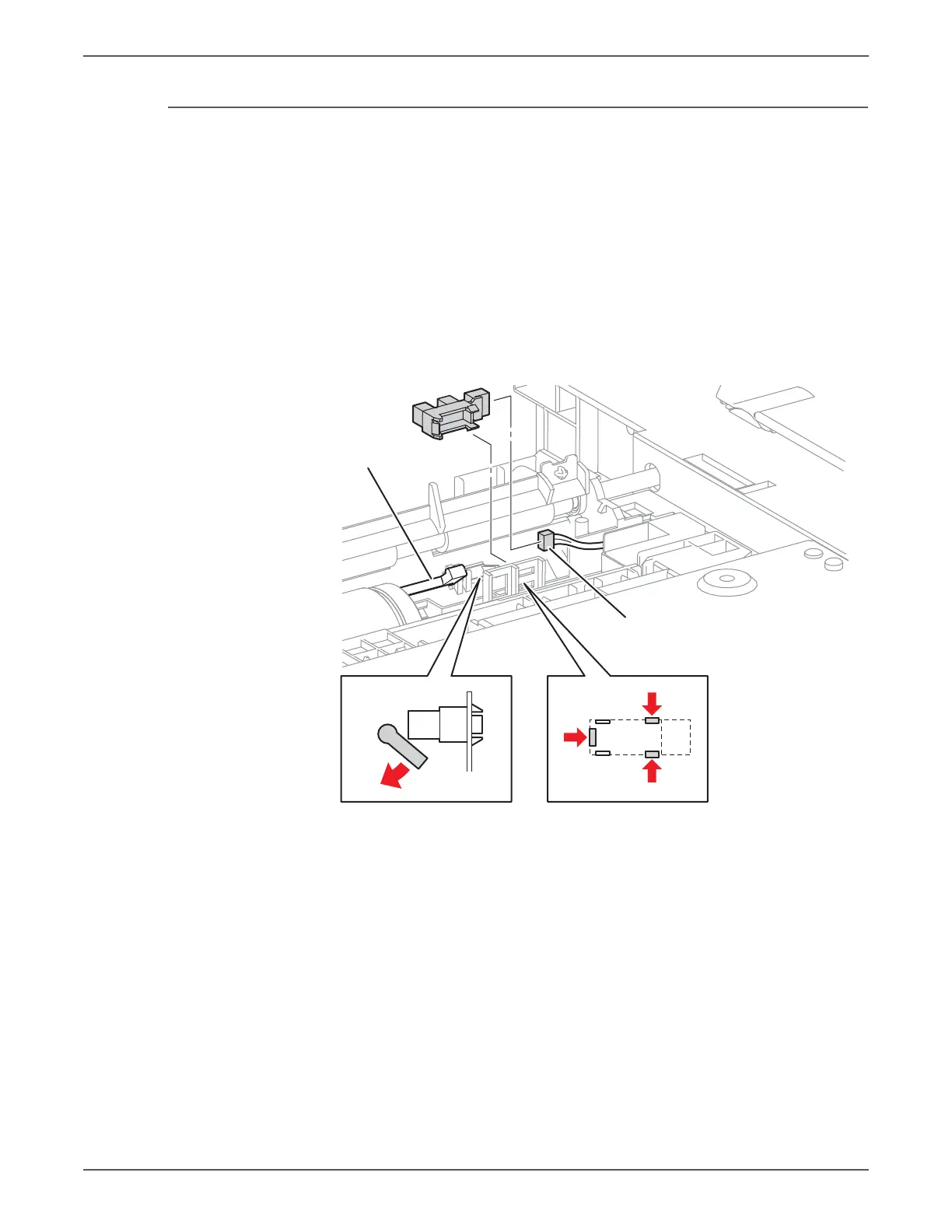

Option Paper Path Sensor
PL12.4.13
Note
To simplify removal of feeder components, rotate the feeder to the rear side.
1. Remove the Optional Feeder (page 8-167).
2. Remove the Chute Cover (page 8-170).
3. Release the hook that secures the registration out actuator and move the
actuator to the right side of the roller.
4. Release the hook that secures the registration out actuator to the chute and
rotate the actuator up to access the sensor.
5. Release three hooks that secure the sensor to the feeder.
6. Disconnect P/J4202 to remove the sensor.
s6500-370
P/J4202
Registration
Input Actuator

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
