Xerox WorkCentre 6505 Service Manual

5-8 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Print-Quality Troubleshooting

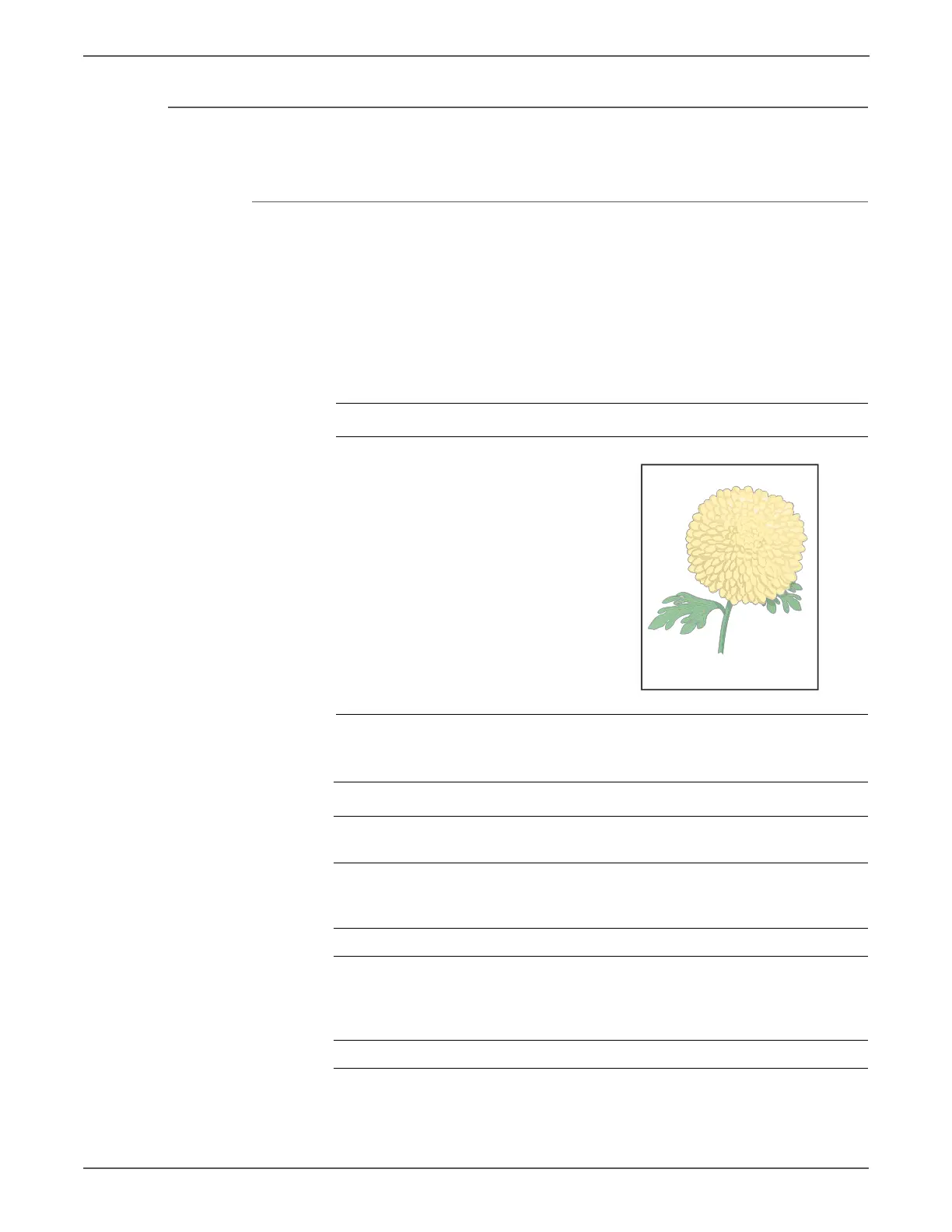

Light or Undertone Print
The overall image density is too light in all colors.
Initial Actions
• Check the Imaging Unit life counter.
• Set the print mode to Enhanced.
• Check for obstructions or debris in the beam path between the Laser and the
Imaging Units.
• Check the media settings at the Control Panel.
Troubleshooting Reference Table
Applicable Parts Example Print
Imaging Unit, PL4.1.21
Laser Unit, PL4.1.99
Dispense Assy, PL5.1.1
Toner Cartridge K, PL5.1.21
Toner Cartridge C, PL5.1.22
Toner Cartridge M, PL5.1.23
Toner Cartridge Y, PL5.1.24
Transfer Belt, PL6.1.7
IP Board, PL8.1.7
MCU Board, PL8.2.13
Troubleshooting Procedure
Step Actions and Questions Yes No
1 Check the toner type.
Are the cartridges genuine Xerox?
Go to step 2. Replace with
Xerox toner.
2 Check the media condition.
Is the media the recommended
type?
Go to step 4. Replace the
media, then go
to step 3.
3 Is the image printed correctly? Complete Go to step 4.
4 Check the print mode.
Is the Standard Mode selected?
Select
Enhanced
Mode, then go
to step 5.
Go to step 6.
5 Is the image printed correctly? Complete Go to step6.
Light or Undertone Print
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
