8-182 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Option Feed Roller
PL12.4.4
1. Remove the Optional Feeder (page 8-167).
2. Remove the Chute Cover (page 8-170).

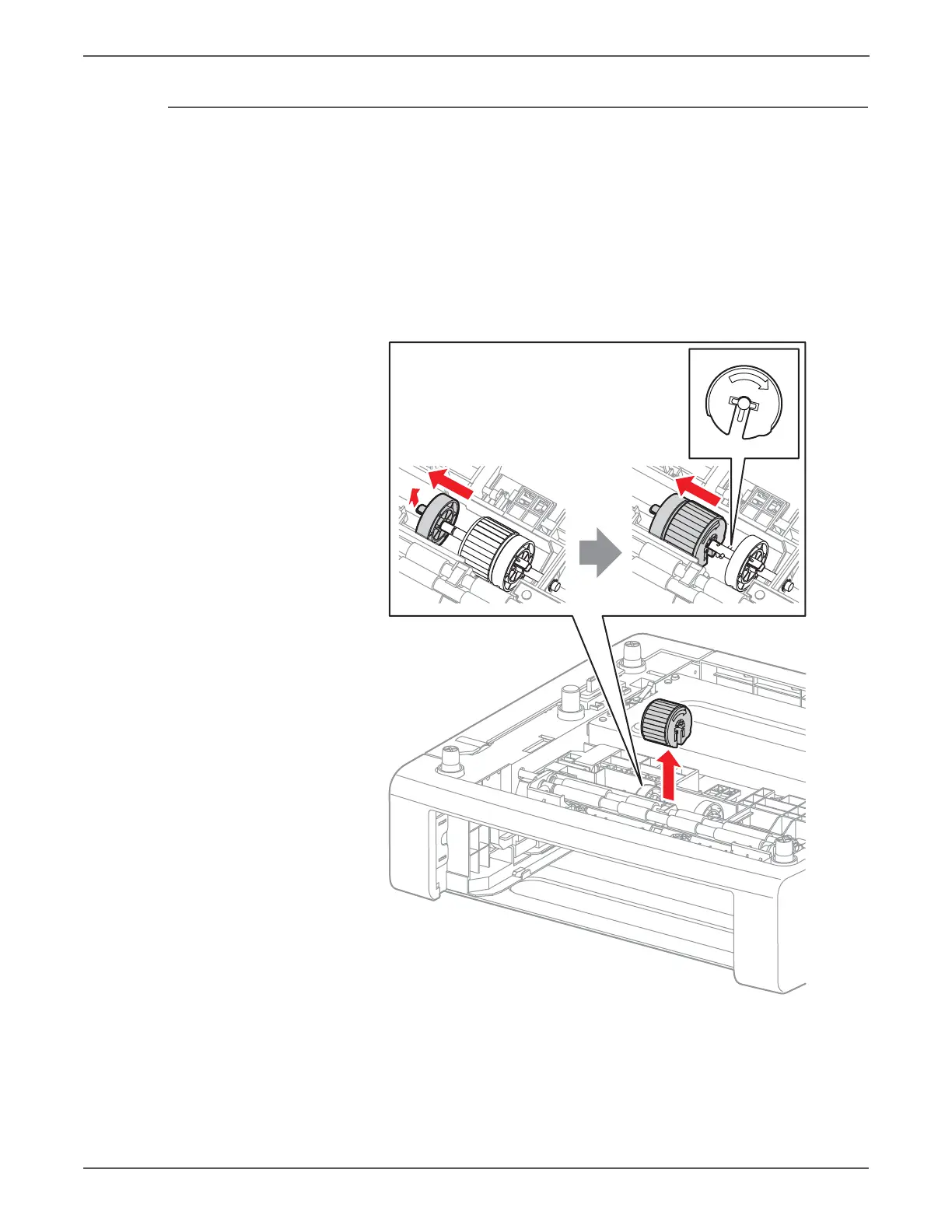

3. Release the hook on the left side of the roller. Move the roller core to the left
side.
4. Move the Feed Roller to the left, so that the grooves in the Feed Roller are clear
of the pins on the feed shaft.
5. Rotate the Feed Roller 180
o
on the feed shaft and allow the Feed Roller to
drop off the shaft.
Replacement Note
The Feed Roller fits over the pins on the feed shaft in only one direction. Note
the location of the Feed Roller grooves when installing the roller on the shaft.
s6500-365
