8-190 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Option Separator Holder
PL12.5.5

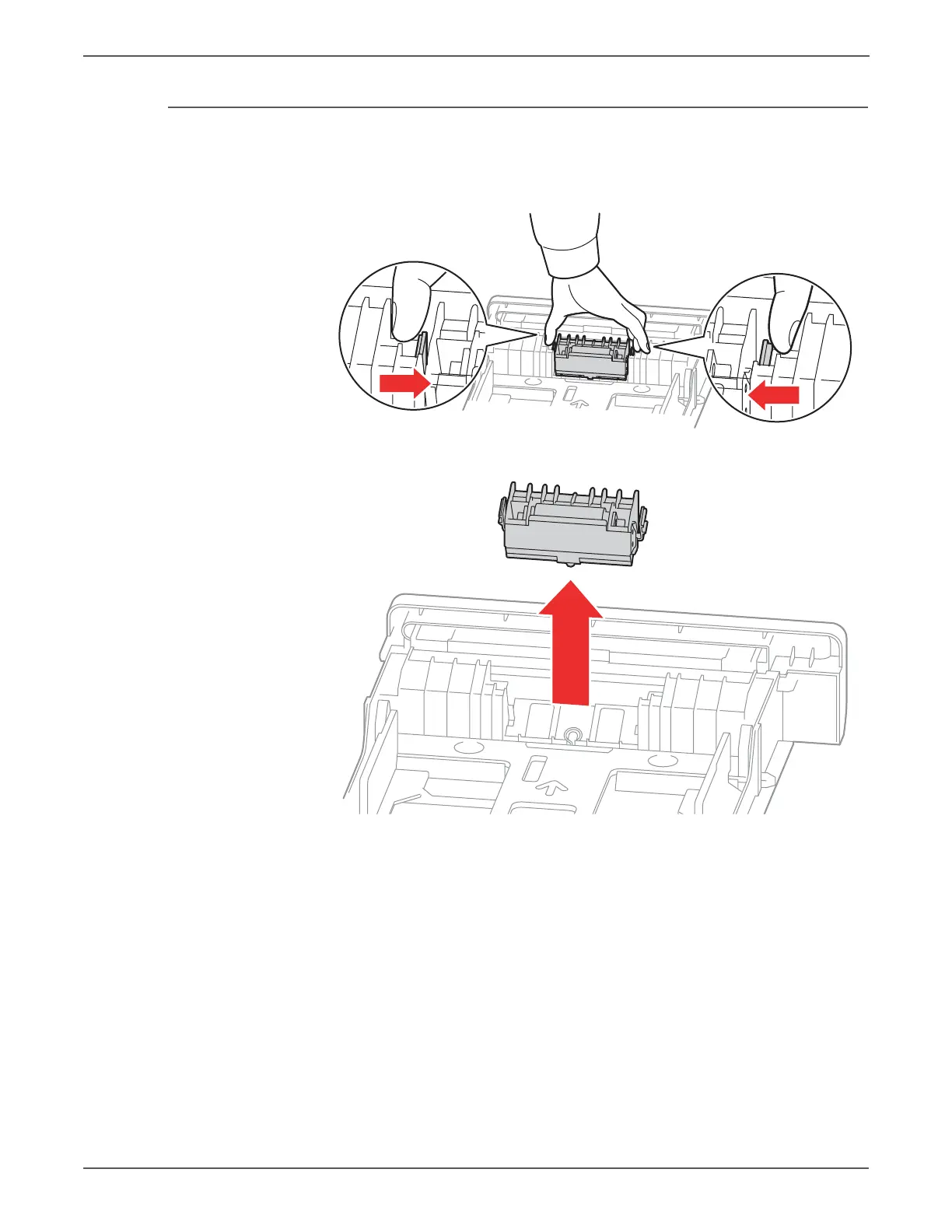

1. Hold the tray and pinch the left and right hooks of the Separator Holder.
Swing the Separator Holder to release the two hooks.
2. Pull the Separator Holder up to remove it from the Tray.
s6500-174
s6500-175
