Xerox WorkCentre 6505 Service Manual

8-40 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

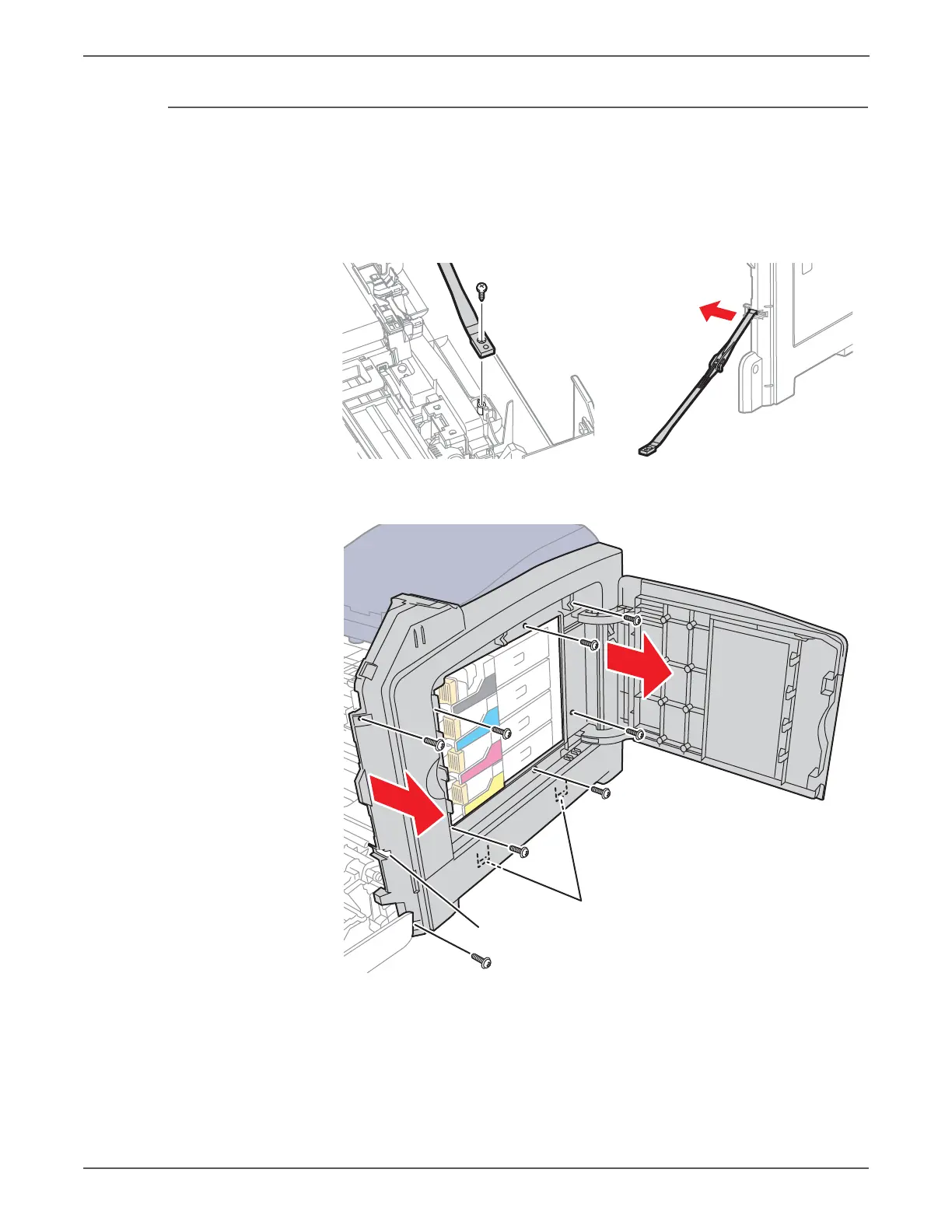

MFP Right Side Cover
MFP PL1.1.6 (Cover Side R)
1. Perform the service preparation steps on page 8-3.
2. Remove the screw (sliver, tap, 8mm) to detach the retainer strap from the
Front Cover Assembly.
3. Open the Toner Door.
4. Remove the 8 screws (silver, tap, 8mm) that secure the cover to the chassis.
5. Release one hook at the front, then two hooks near the bottom to remove the
cover.
s6500-211
s6500-220
Hook
Hooks
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
