Xerox WorkCentre 6505 Service Manual

8-12 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Toner Cartridges
PL5.1.21~24
Note
Although the illustrations for this procedure show the SFP, the details for
removing the Toner Cartridges are the same for the MFP.

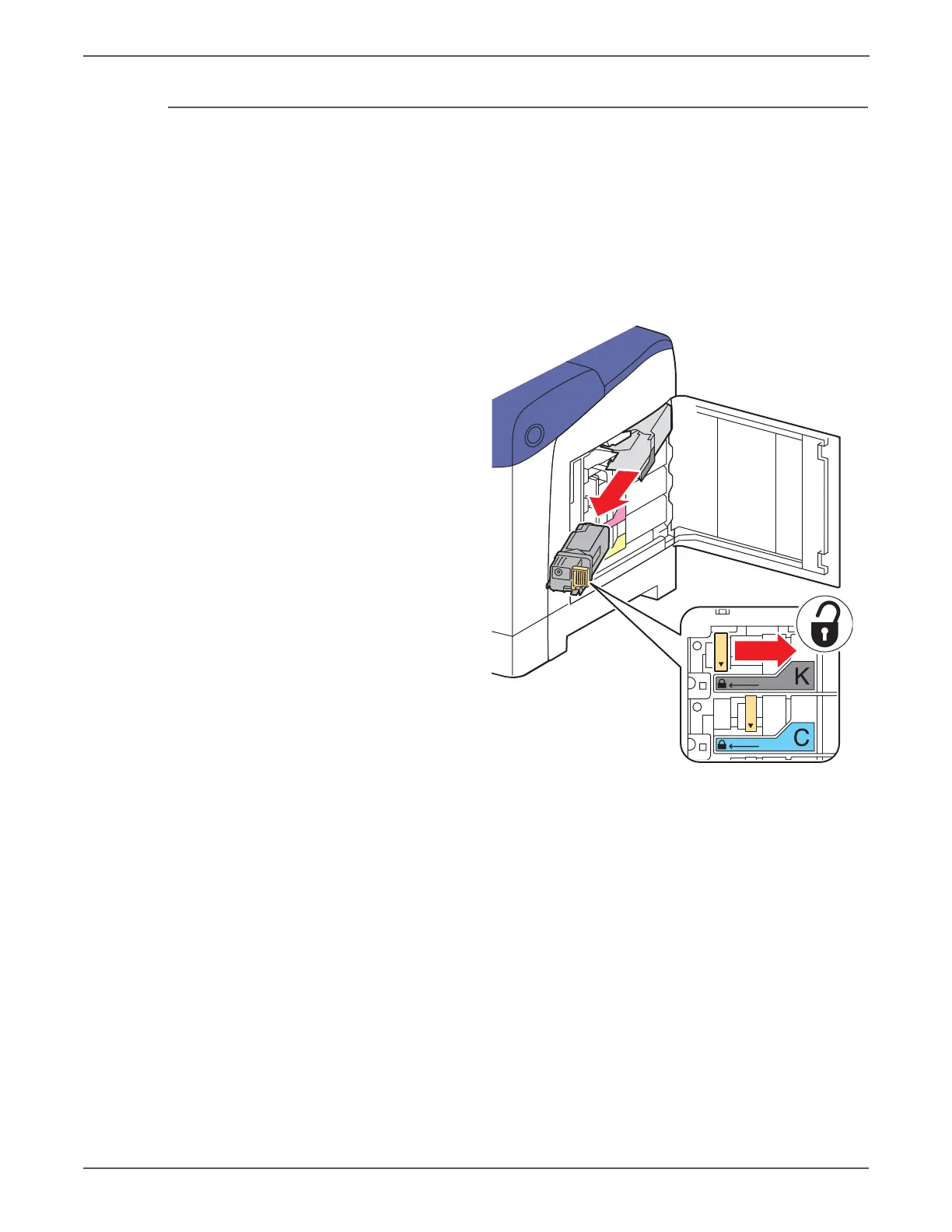

1. Open the Toner Door.
2. Push the Toner Cartridge handle toward the rear to release the lock.
3. Swing open the Toner Cartridge Holder and remove the cartridge as shown.
Replacement Note
When replacing the toner cartridge, be sure to push the handle all the way
forward to lock the toner cartridge in place.
K
C
M
Y
s6500-181
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
