Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-171
Service Parts Disassembly
Option Rear Cover
PL12.1.6
1. Remove the Optional Feeder (page 8-167).
2. Remove the Tray.
3. Remove the Front Cover (page 8-168).
4. SFP only: Remove the rear tray cover.
5. Remove the Left Side Cover (page 8-169).
6. Remove the Right Side Cover (page 8-172).
7. Remove two screws that secure the Rear cover to the feeder.

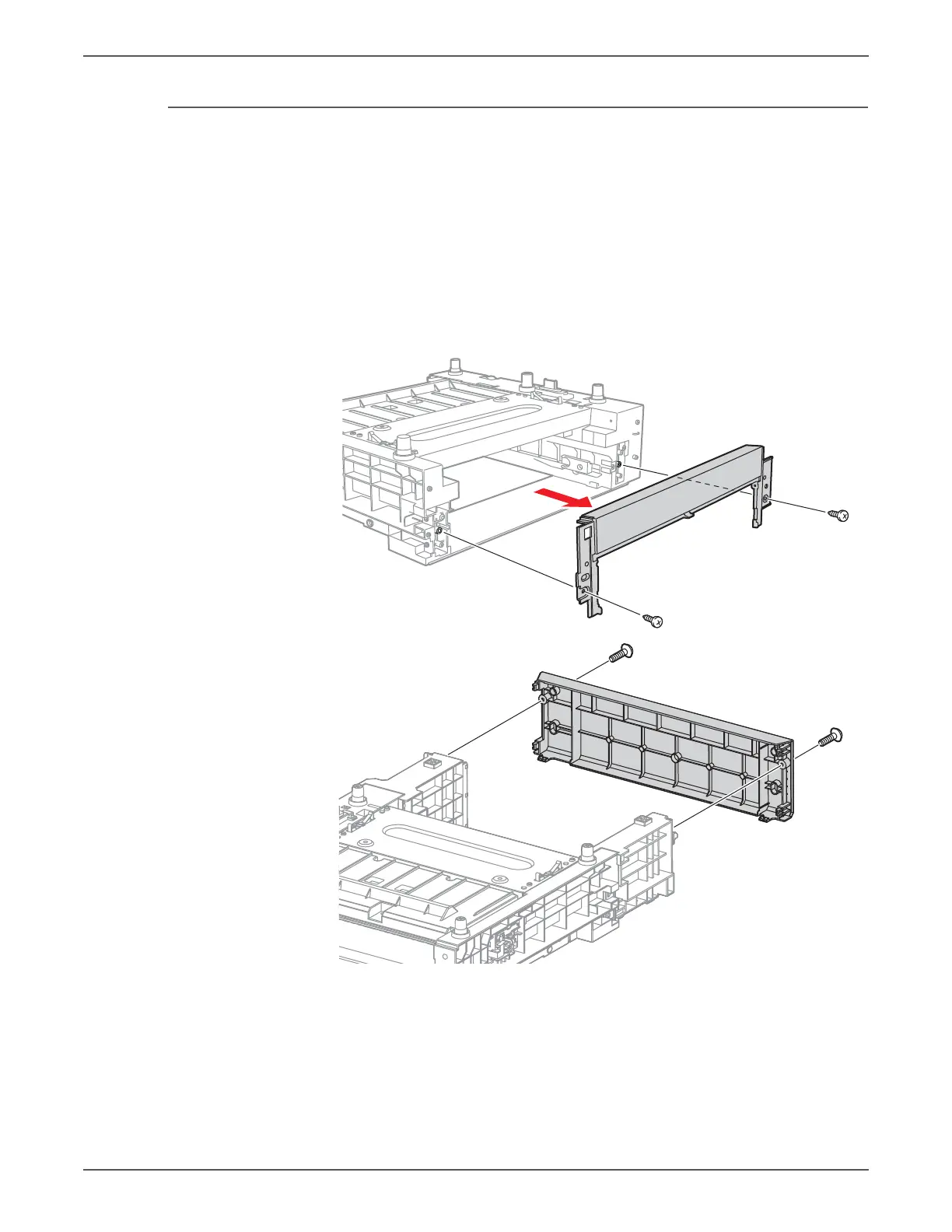

s6500-353
MFP
SFP
