Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 1-13
General Information
Optional Feeder
The 250-sheet, Optional Feeder (Tray 2) increases the input capacity. The feeder
attaches below Tray 1 with 2 screws. Only one Optional Feeder per printer is
supported. Electrical connection is made by a single interface connector.
The SFP and MFP have different Optional Feeders, even though they share the
same mechanism and have identical functions. The only difference is the size,
caused by the larger footprint of the MFP.
Note
Remove the protective cap from the Optional Feeder connector before
installation.

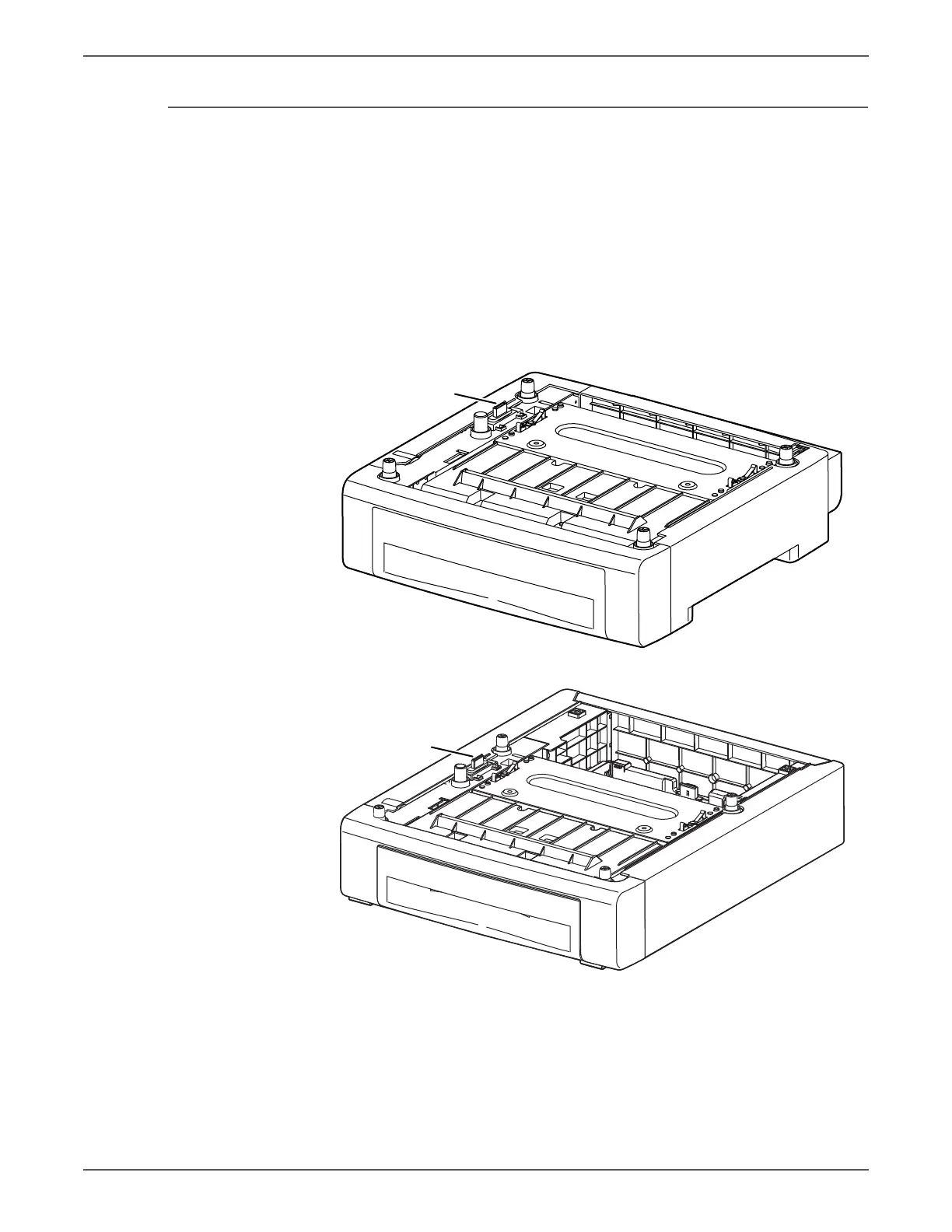

s6505-510
MFP
Connector
s6500-510
SFP
Connector

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
