Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-181
Service Parts Disassembly
Option Registration Roller Bearing
PL12.3.16
1. Remove the Optional Feeder (page 8-167).
2. Remove the front cover (page 8-168).
3. Remove the left side cover (page 8-169).
4. Remove the Drive Clutch (page 8-174).
5. Remove the Feed Gear Kit (page 8-178).

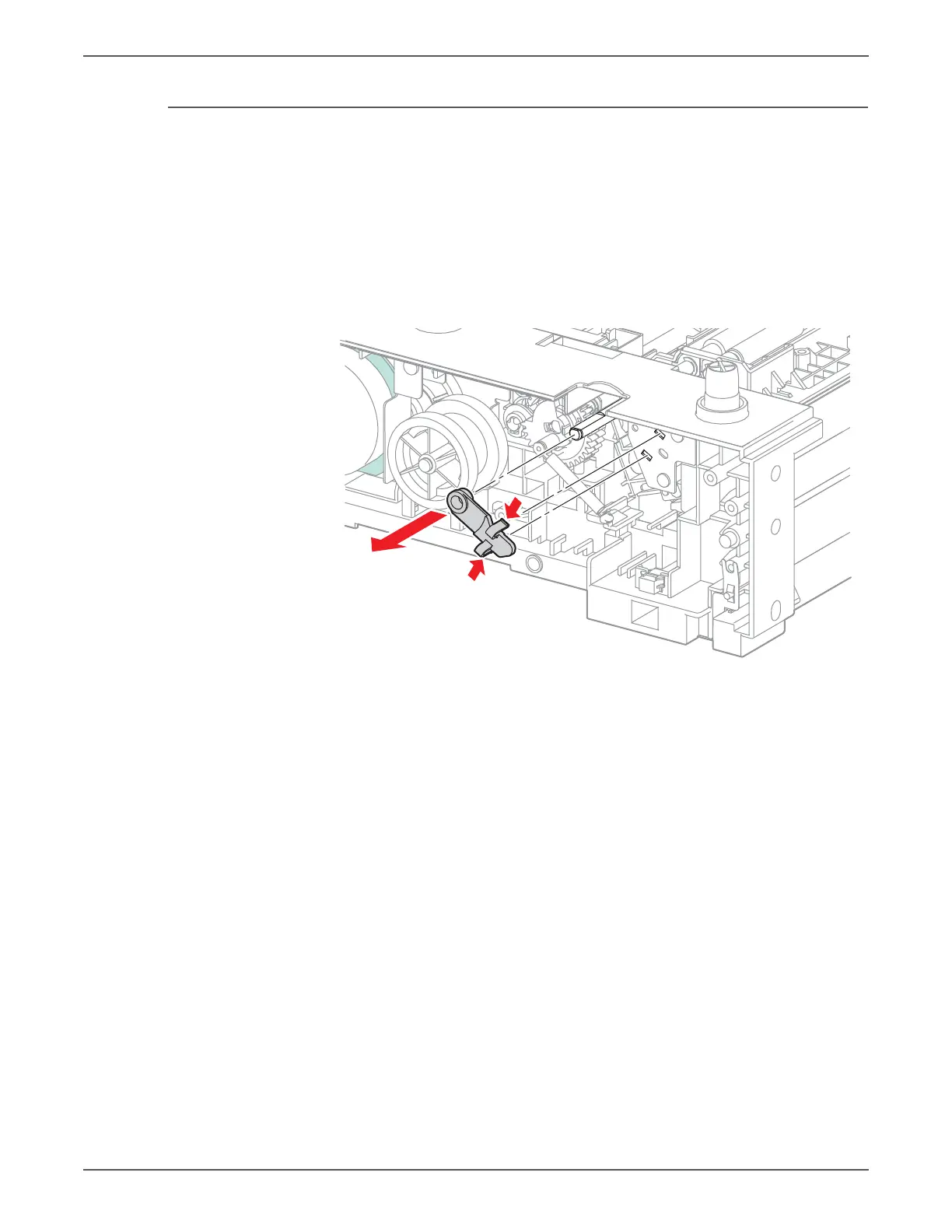

6. Release 2 hooks that secure the bearing and remove the bearing from the
registration roller shaft.
s6500-364

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
