Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 5-25
Print-Quality Troubleshooting

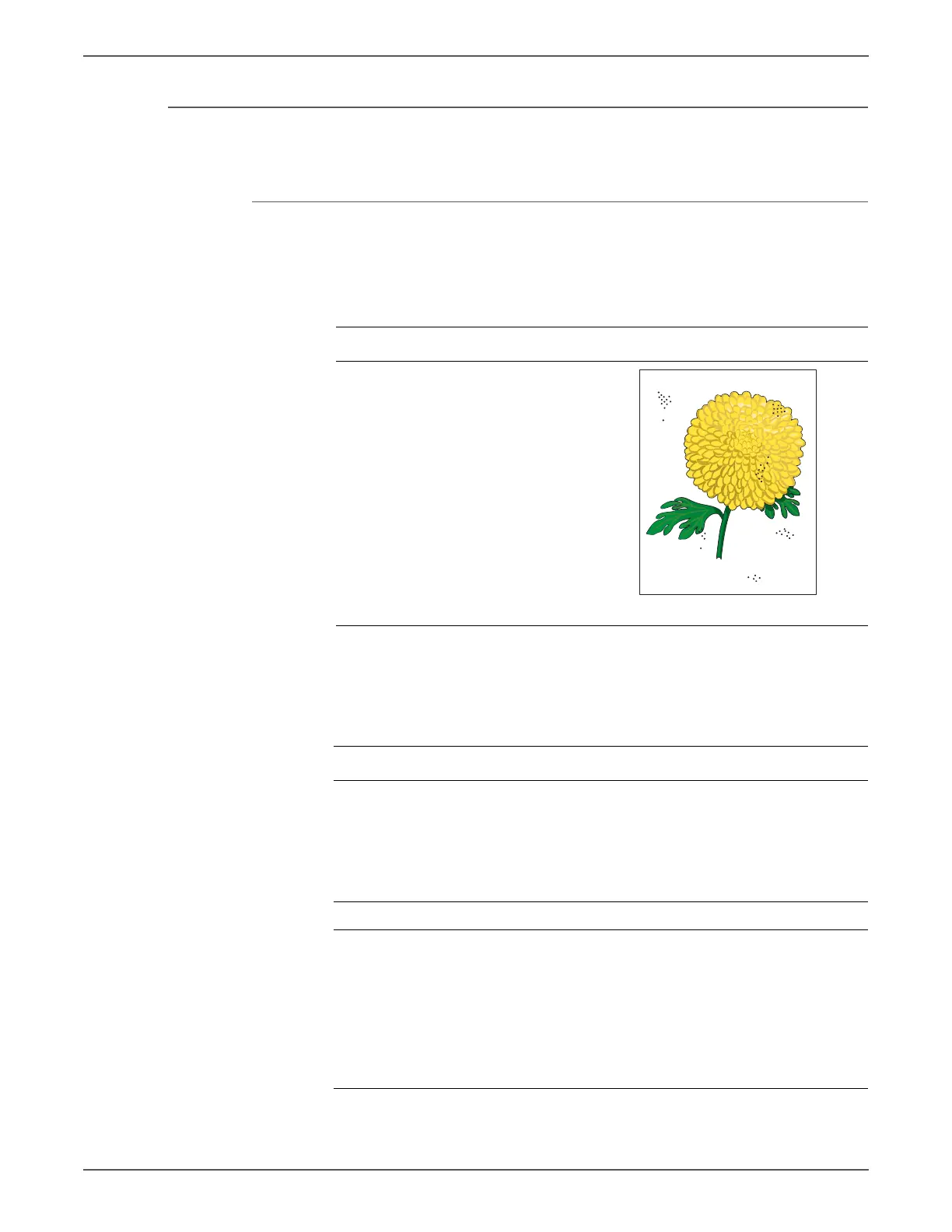

Random Spots
There are spots of toner randomly scattered across the page.
Initial Actions
• Check the paper transfer path.
• Ensure there are no debris on the transfer path.
Allow the Fuser to cool before starting the procedure.
Troubleshooting Reference Table
Applicable Notes Example Print
Imaging Unit, PL4.1.21
Laser Unit, PL4.1.99
Transfer Belt, PL6.1.7
IP Board, PL8.1.7
MCU Board, PL8.2.13
Troubleshooting Procedure
Step Actions and Questions Yes No
1 Inspect the paper transfer path.
Is there any contamination on the
paper transfer path?
Clean the
paper path
(refer to
“Cleaning” on
page 7-2), then
go to step 2.
Go to step 3.
2 Is the image printed correctly? Complete Go to step 3.
3 Print the Contamination Check test
print (page 5-49): Tes t Pri nt >
Contamination Chk
Compare any blank areas with the
Pitch Chart (page 5-50).
Do any of the blank areas appear at
regular intervals, and match the
chart?
Replace the
corresponding
parts.
Go to step 4.
Random Spots

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
