Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-153
Service Parts Disassembly
MFP Humidity Sensor
MFP PL8.1.10 (Sensor HUM)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-18).

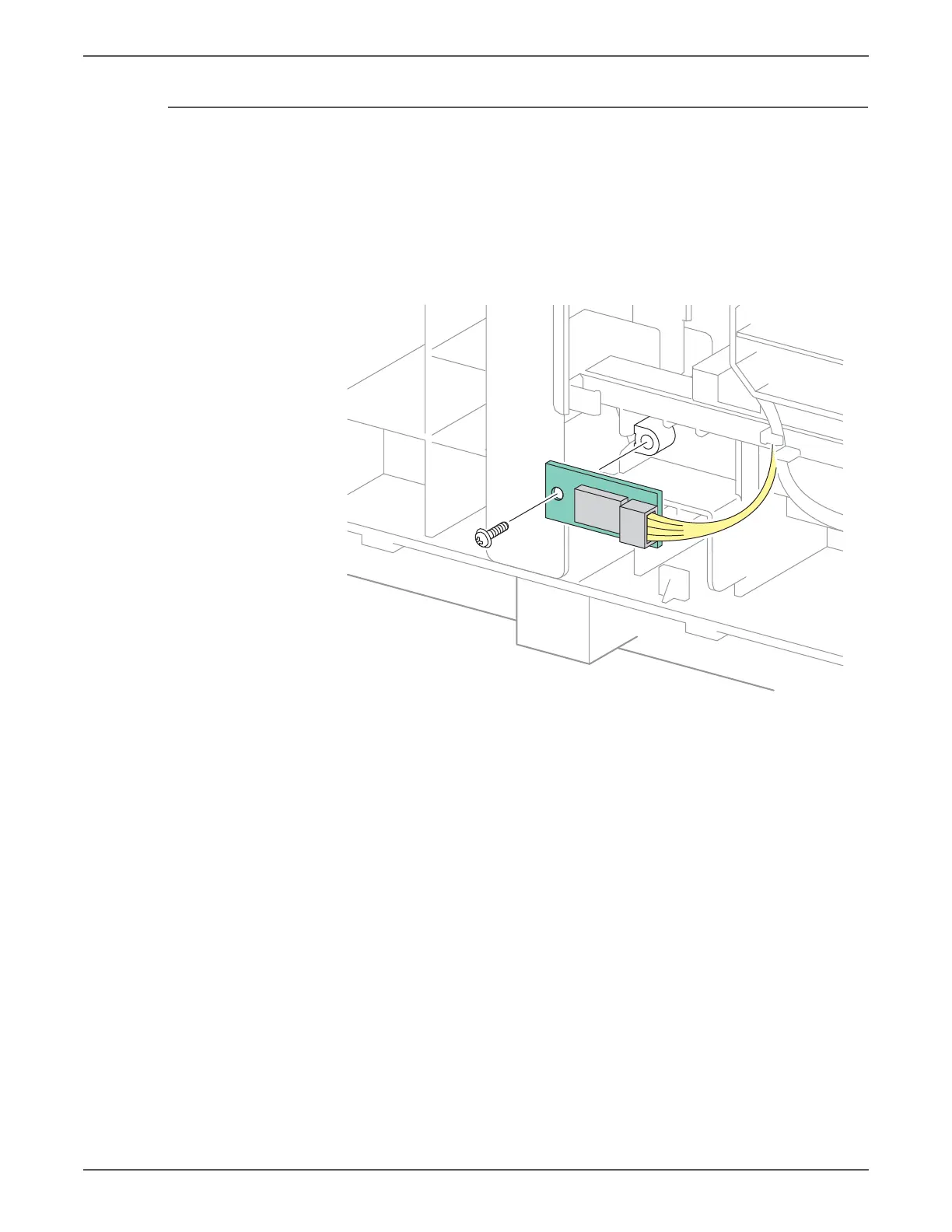

4. Remove the screw (silver, tap, 8mm) that secures the Humidity Sensor to the
chassis.
5. Unplug the connector (P/J201) and remove the sensor.
s6500-477
To Next Page
