Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-37
Service Parts Disassembly
MFP Left Side Cover
MFP PL 1.1.13 (Cover Assy Side L)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.

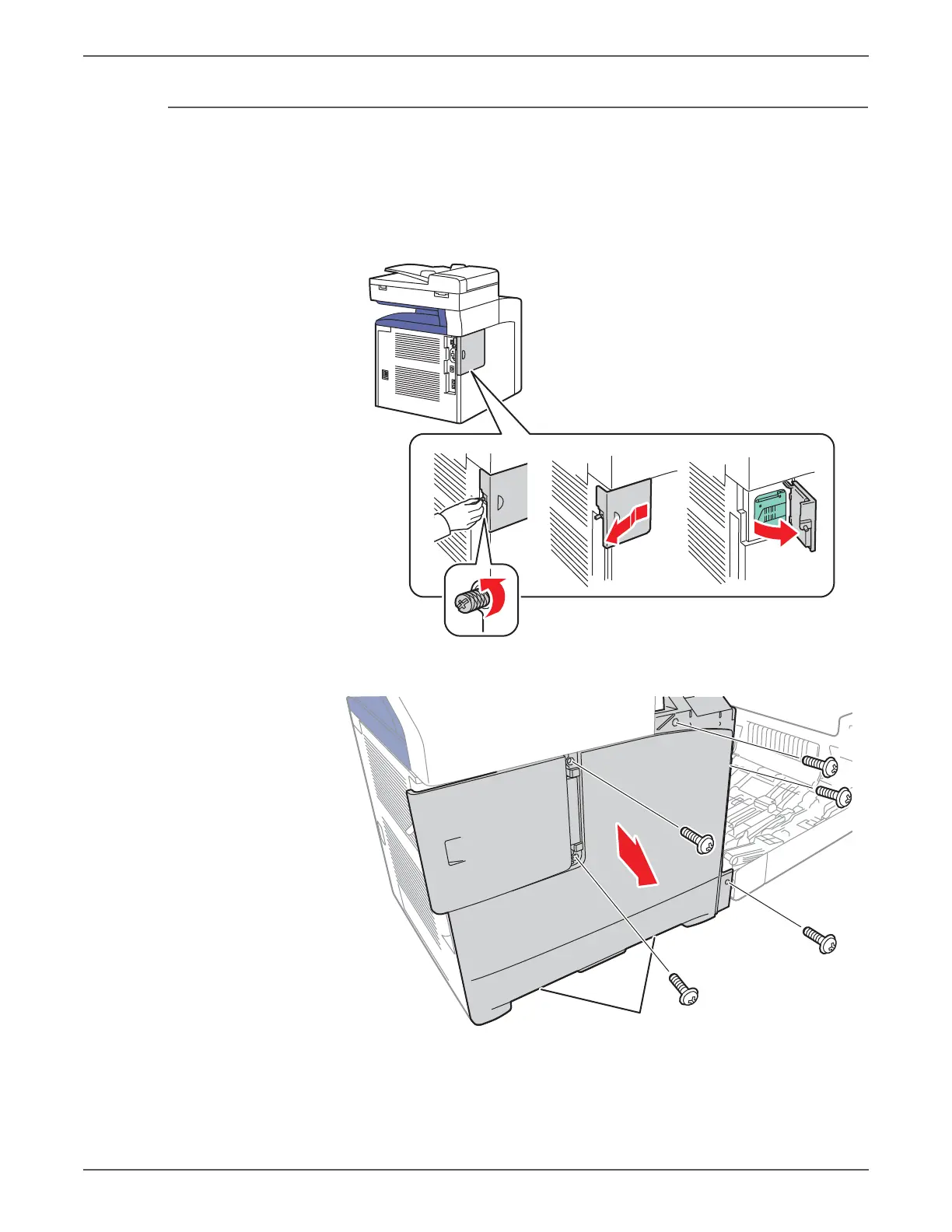

3. Loosen the knurled screw that secures the IP Board Cover. Gently pull the
cover back and swing the cover open.
4. Remove the two screws (silver, M4, 6mm) and the three screws (silver, tap,
8mm) that secure the Left Side Cover.
5. Release the 3 hooks (one on the front, two at the bottom), then shift the Left
Side Cover toward the front to remove it from the printer.
s6500-215
s6500-216
Hooks

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
