Xerox WorkCentre 6505 Service Manual

2-22 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Theory of Operation
Feeder

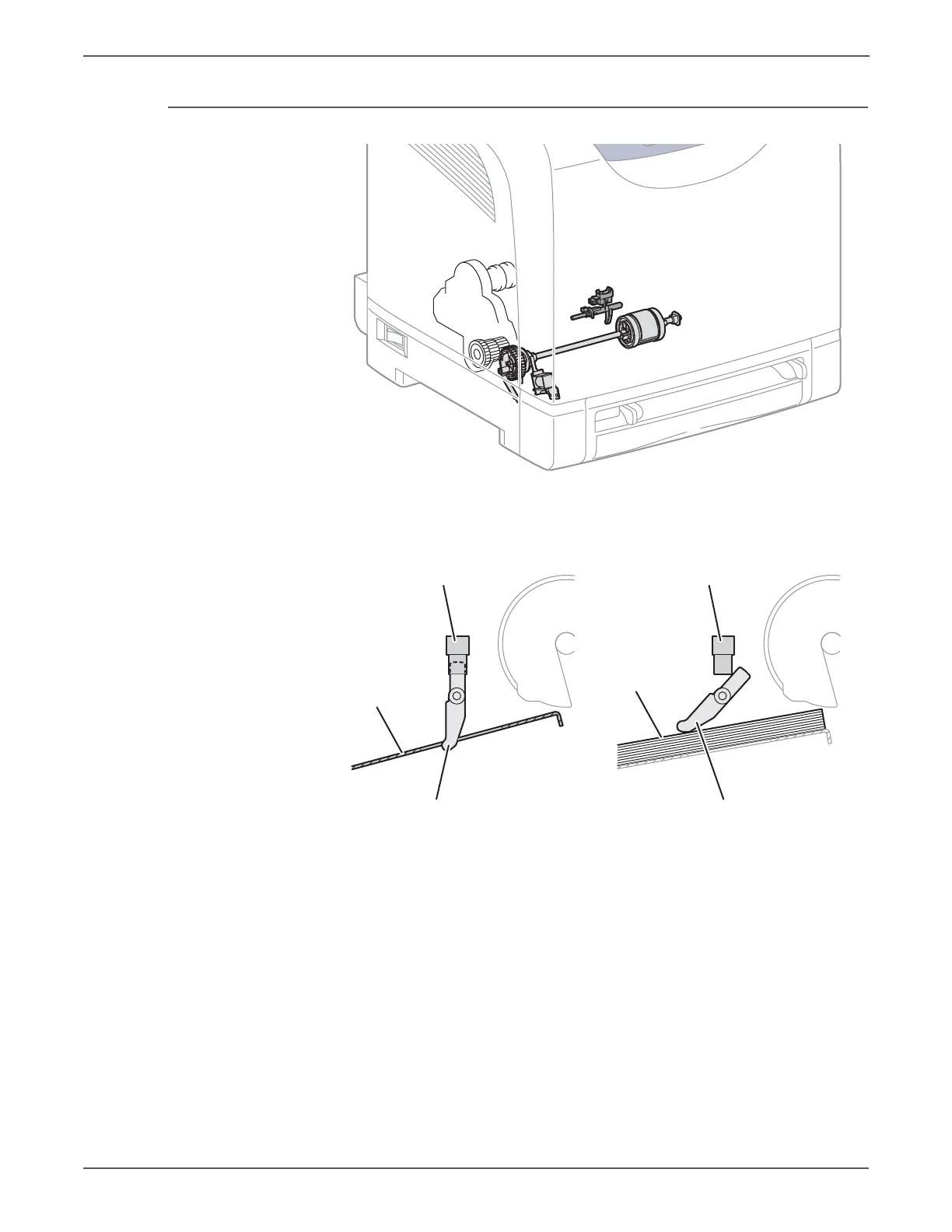

•Tray No Paper Sensor
Detects the presence/absence of paper in the Tray based on the position of
No Paper Actuator.
s6500-037
s6500-038
Tray No Paper Sensor
No Paper Actuator
(No Paper Position)
Tray No Paper Sensor
Paper
No Paper Actuator
Bottom Plate
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
