2-8 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Theory of Operation
Toner Dispense Path

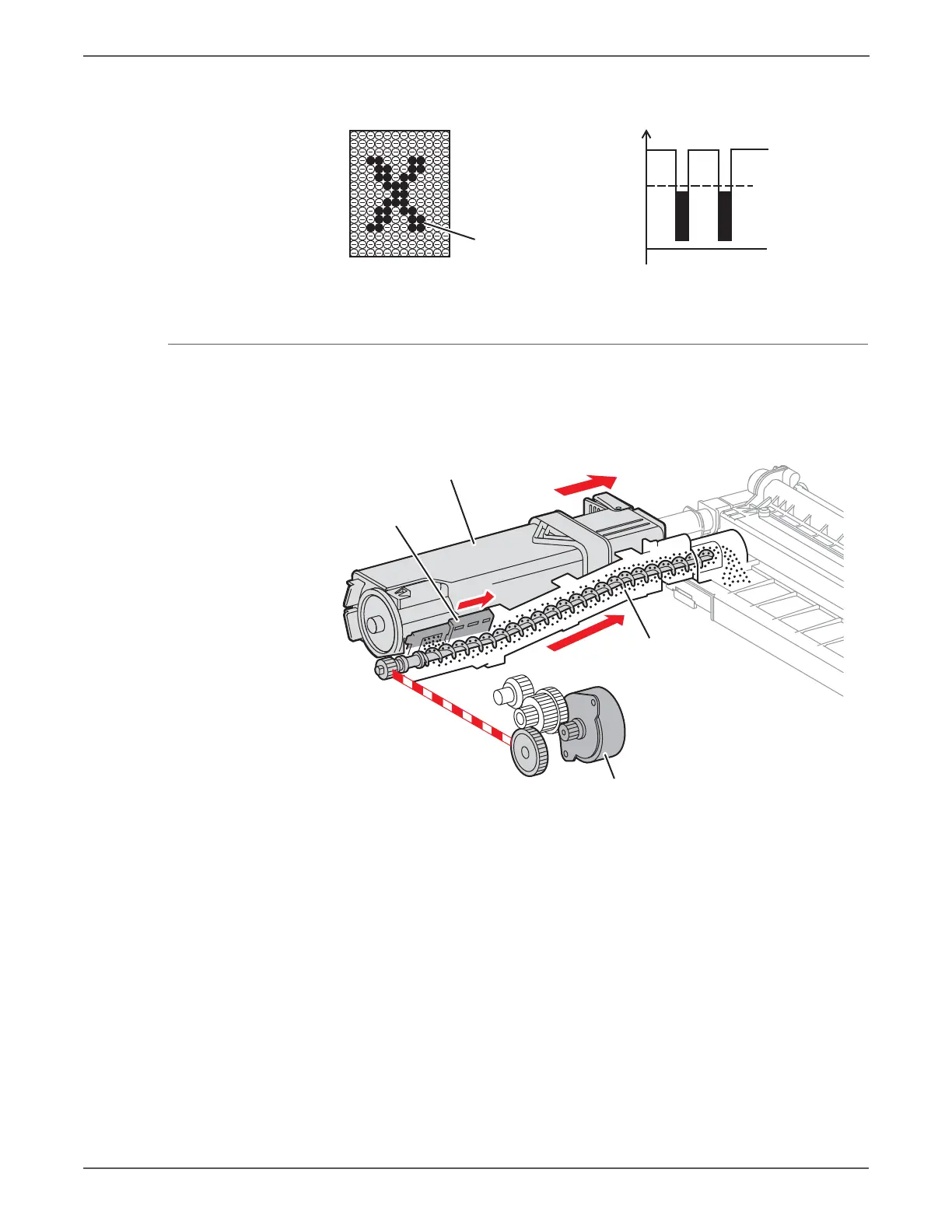

Toner moves from the Toner Cartridge to the Imaging Unit using an auger driven
by the toner motor. When the Toner Cartridge is locked in position, the Toner
Cartridge shutter moves forward opening the toner supply port. The toner is fed to
the Imaging Unit from a second port in the auger housing.
s6500-024
Drum Surface
Toner
Electric Potential
on Drum
Developing
Bias
-V
0
s6500-025
Toner Cartridge
Auger
Shutter
Toner Motor
