Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-113
Service Parts Disassembly
Drive
Sub-Drive Assembly
PL 7.1.1 (Drive Assy Sub)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (SFP, page 8-18; MFP, page 8-37).
4. Remove the Drive Clutch and Bearing Kit (page 8-48).
5. Remove the Feed Drive Assembly (page 8-117).
6. Remove the Main Drive Assembly (page 8-114).
7. Remove Gear P2 (page 8-116).
8. Release the Interlock Harness from the clamps.
9. Disconnect P/J221 from the Sub-Drive Assembly.

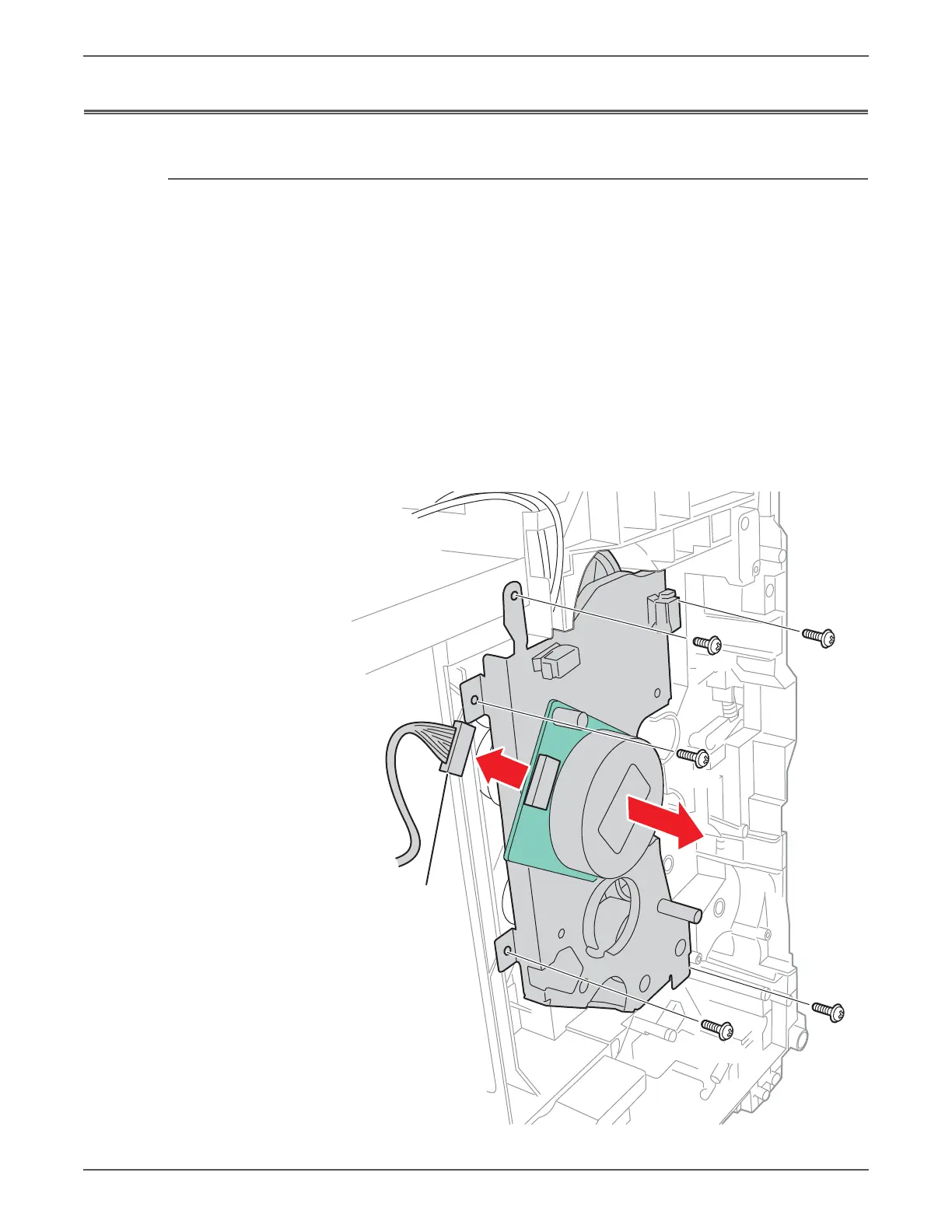

10. Remove the screws (one silver, M4, 6mm; four silver, tap, 8mm) that secure the
Sub-Drive Assembly to remove the drive.
s6500-295
6mm
8mm
8mm
P/J221
8mm
8mm

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
