Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-43
General Troubleshooting

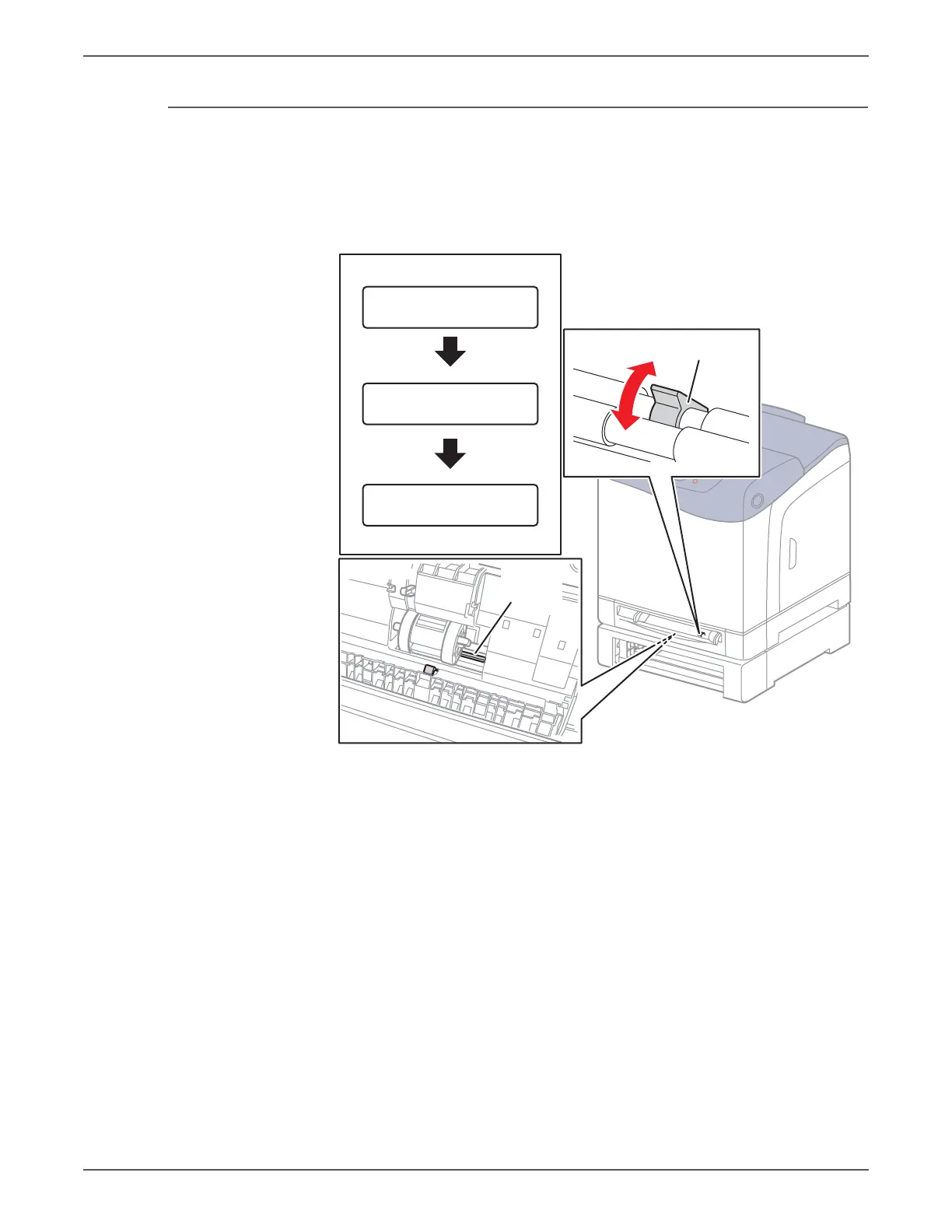

Tray 2 Paper Path Sensor
1. Enter Service Diagnostics (page 4-8).
2. Run the Tray No Paper test: Engine Diag > Sensor Test > Tray 2 Path Sensor.
3. Remove Tray 2.
4. Reach into the Tray 2 cavity and move the actuator while checking the Control
Panel display.
Note
Press Cancel to stop the test.
s6500-130
Control Panel
Normal
Actuator
Option Path Sensor
L - 00
Option Path Sensor
H - 00
Option Path Sensor
L - 01
Actuator
Access
Underside

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
