Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-33
Service Parts Disassembly
MFP Covers
MFP Front Cover
MFP PL1.2.1 (Cover Assy Front)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-37).
4. Remove the Right Side Cover (page 8-40).

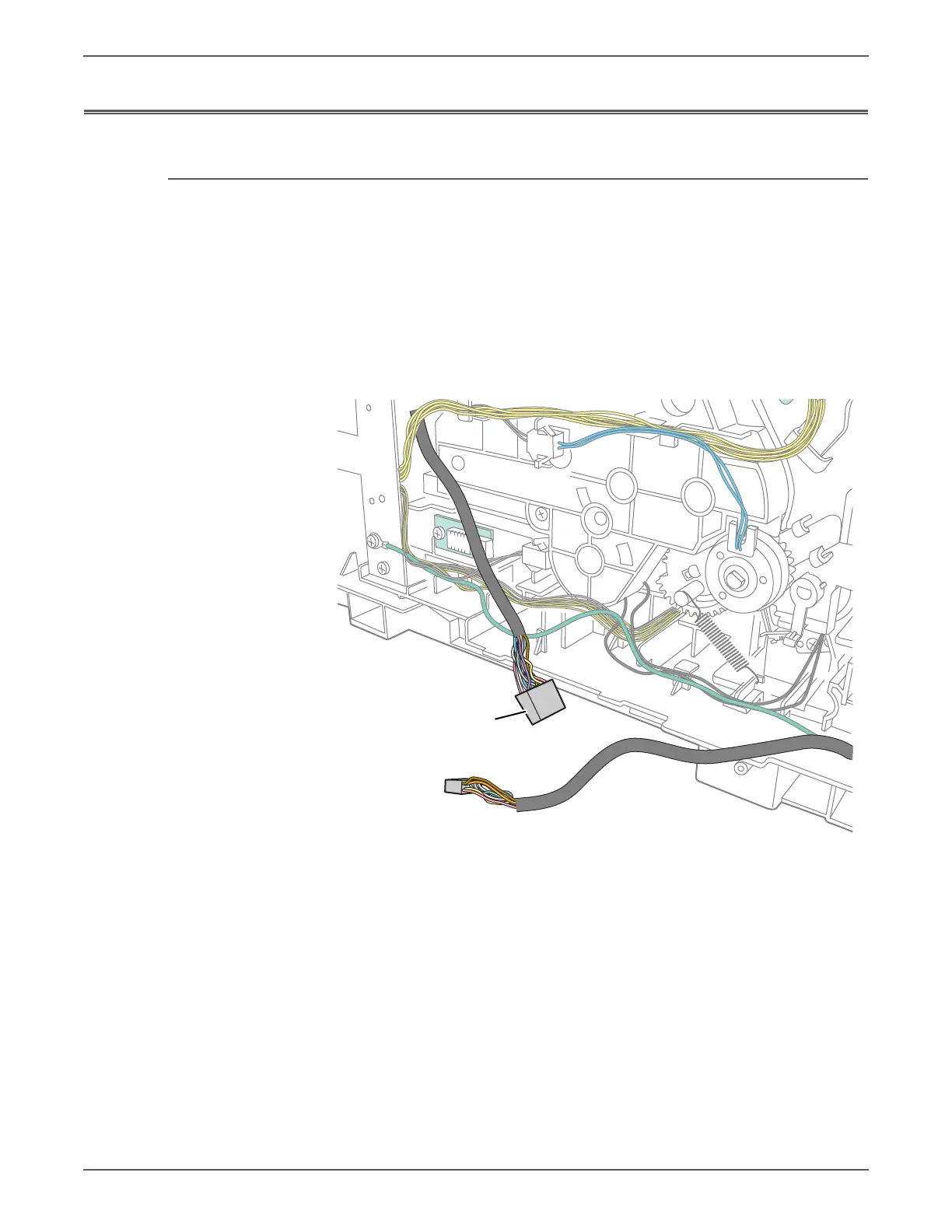

5. Release the Front Cover Harness from the rib on the left side, and disconnect
P/J5301. Leave the relay connector with the chassis.
6. Release the Front Cover Harness from the chassis cable hooks.
Note
Steps 6, 7, and 8 apply only to duplexing models.
7. Remove the screw (silver, 6mm) that attaches the grounding terminal of the
Duplex Grounding Harness Assy; release the Harness Assy from the hooks of
the printer.
s6500-209
P/J5301
