8-34 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

Service Parts Disassembly

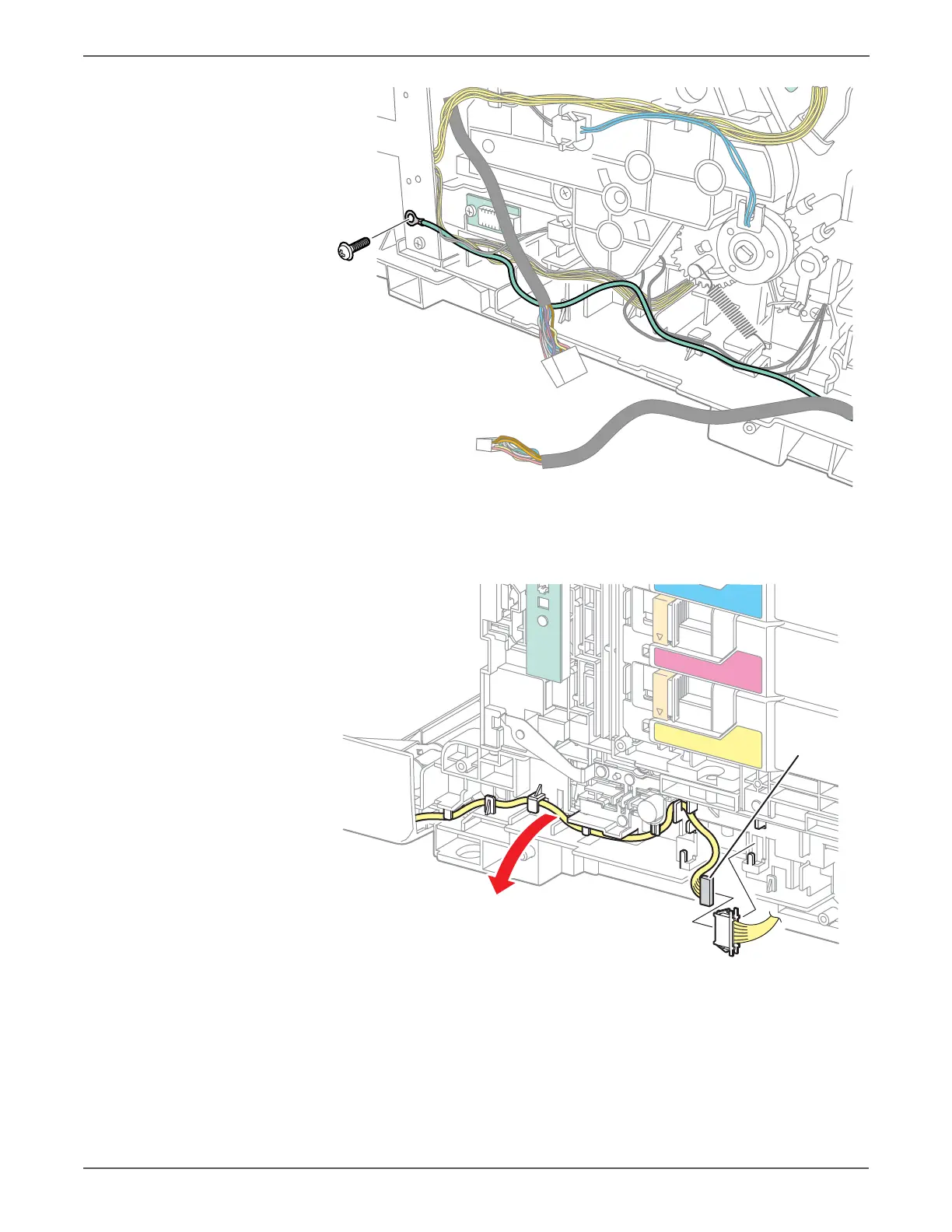

8. Release the relay connector from the rib of the printer; disengage the

connector (P/J271) of the MFP Duplex Harness Assy.

9. Release the MFP Duplex Harness Assy. from the hooks of the printer.

s6500-210

s6500-472

P/J271
