8-32 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

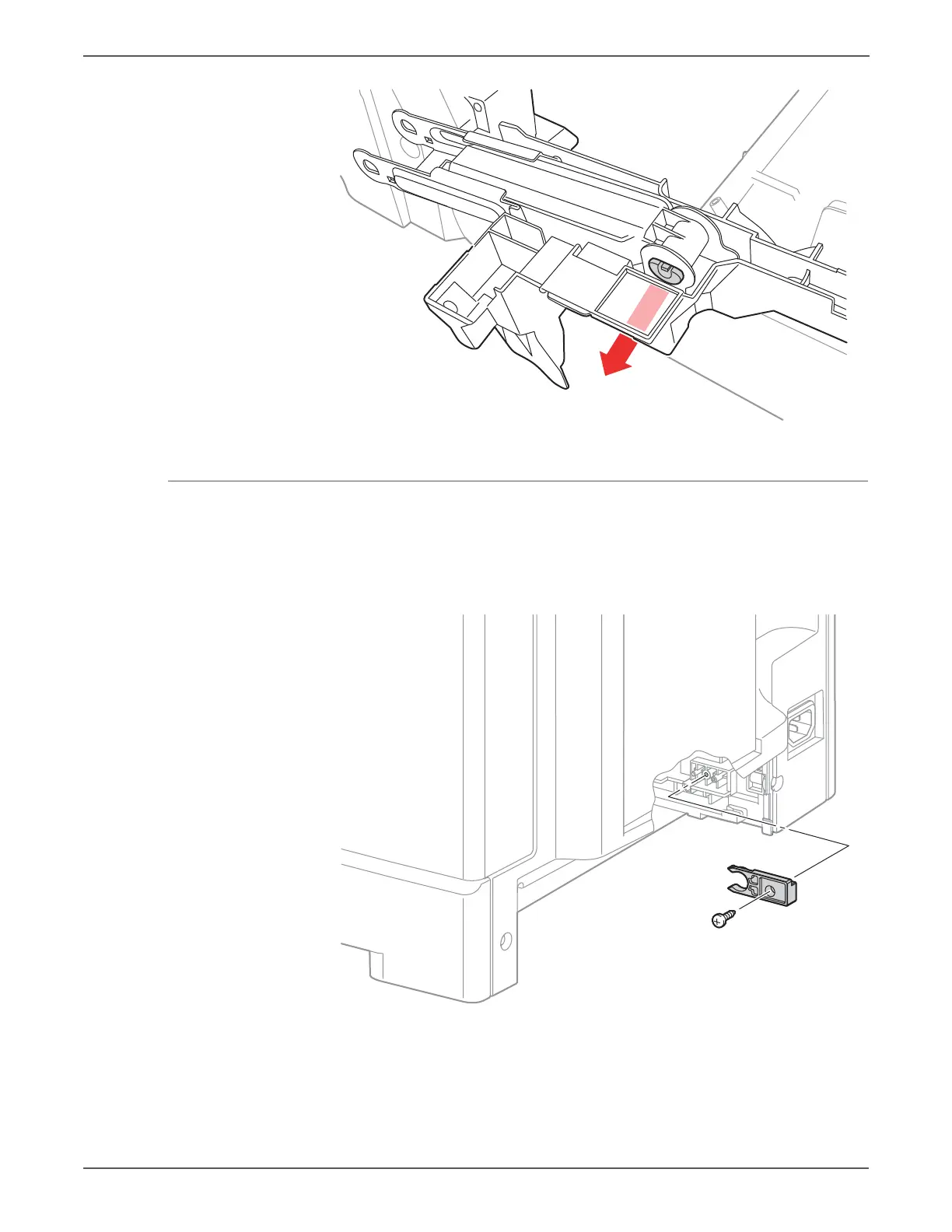

SFP Cassette Stopper
PL3.1.10 (Stopper CST)
1. Remove Tray 1.
2. Remove the Tray Rear Cover (page 8-19).
3. Remove the screw that secures the Cassette Stopper to the chassis.
s6500-207
s6500-208
