Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-107
Service Parts Disassembly
Toner Cartridge Holders
PL 5.1.17~20 (Kit Holder Assy TCRU [K, C, M, Y])
Note
The following procedure applies to all four Toner Cartridge Holders. They must
be removed sequentially in order, starting with K (black).
1. Remove Tray 1.
2. Remove the Toner Cartridges (page 8-12).
3. Open the Front Cover.
4. SFP Only: Remove the following parts:
a. Top Cover (page 8-15).
b. Right Side Cover (page 8-17).
c. Left Side Cover (page 8-18).
d. Rear Tray Cover (page 8-19).
e. Rear Cover (page 8-20).
5. MFP Only: Remove the following parts:
a. Left Side Cover (page 8-37).
b. Outer Pole Cover (page 8-39).
c. Right Side Cover (page 8-40)
d. Rear Cover (page 8-43).

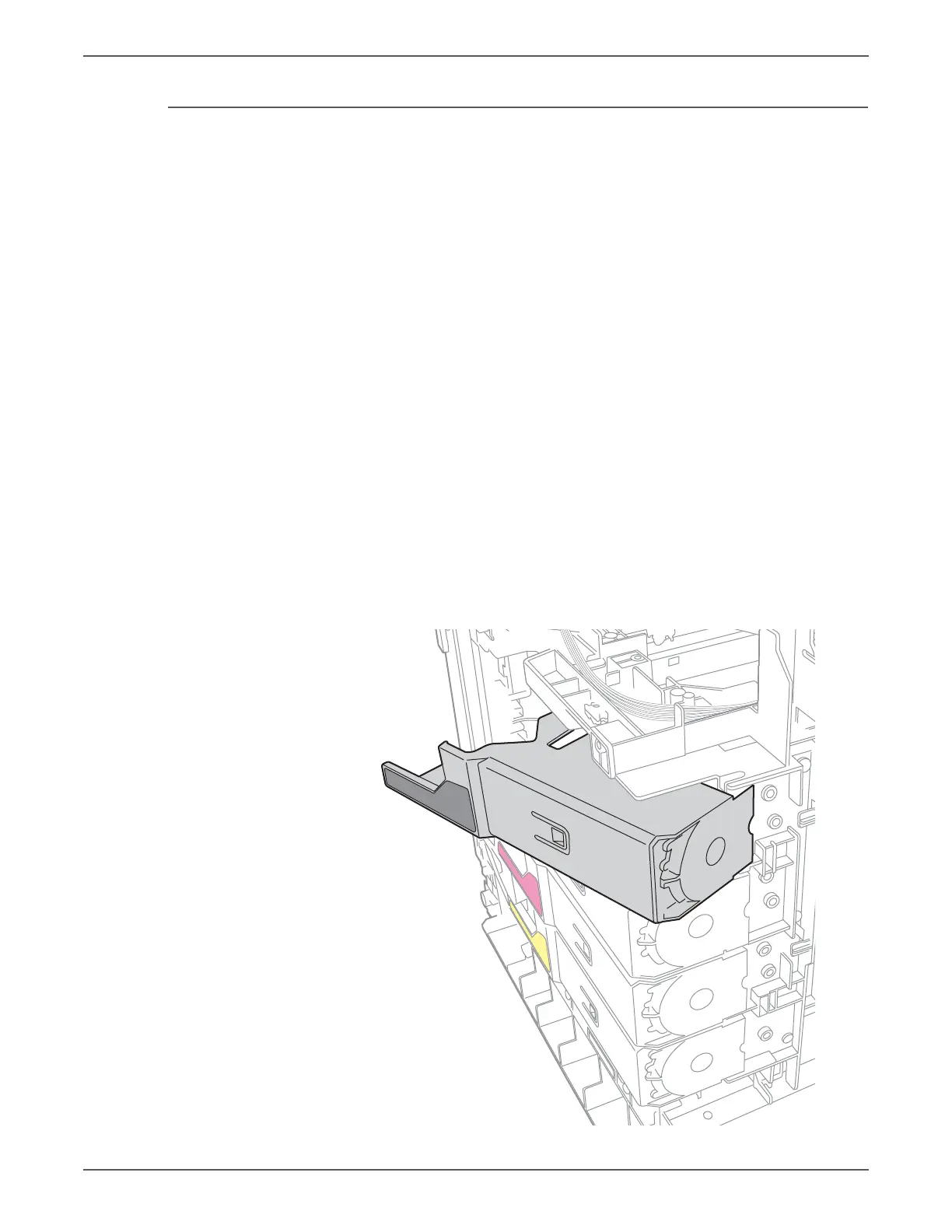

6. Squeeze the center of the Toner Cartridge Holder to release the Toner
Cartridge Holder from the boss on the Dispenser Frame. Open the Toner
Cartridge Holder by 90 degrees.
s6500-289

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
