Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-45
General Troubleshooting
Tray 2 Feed Solenoid Test
The Tray 2 Feed Solenoid engages the pick roller.
Note
Do not remove the Optional Feeder from the printer and close the Interlock
Switch to provide power to the device under test.
1. Enter Service Diagnostics (page 4-8).
2. Remove Tray 2 from the Optional Feeder.
3. Remove the Rear Cover from the Optional Feeder ().
4. Remove the Left Side Cover from the Optional Feeder ().
5. Run the Main Motor test: Engine Diag > Motor Test > Tray 2 Feed Solenoid
Auto.
6. Check Feed Solenoid movement.
Note
Press Cancel to stop the test.

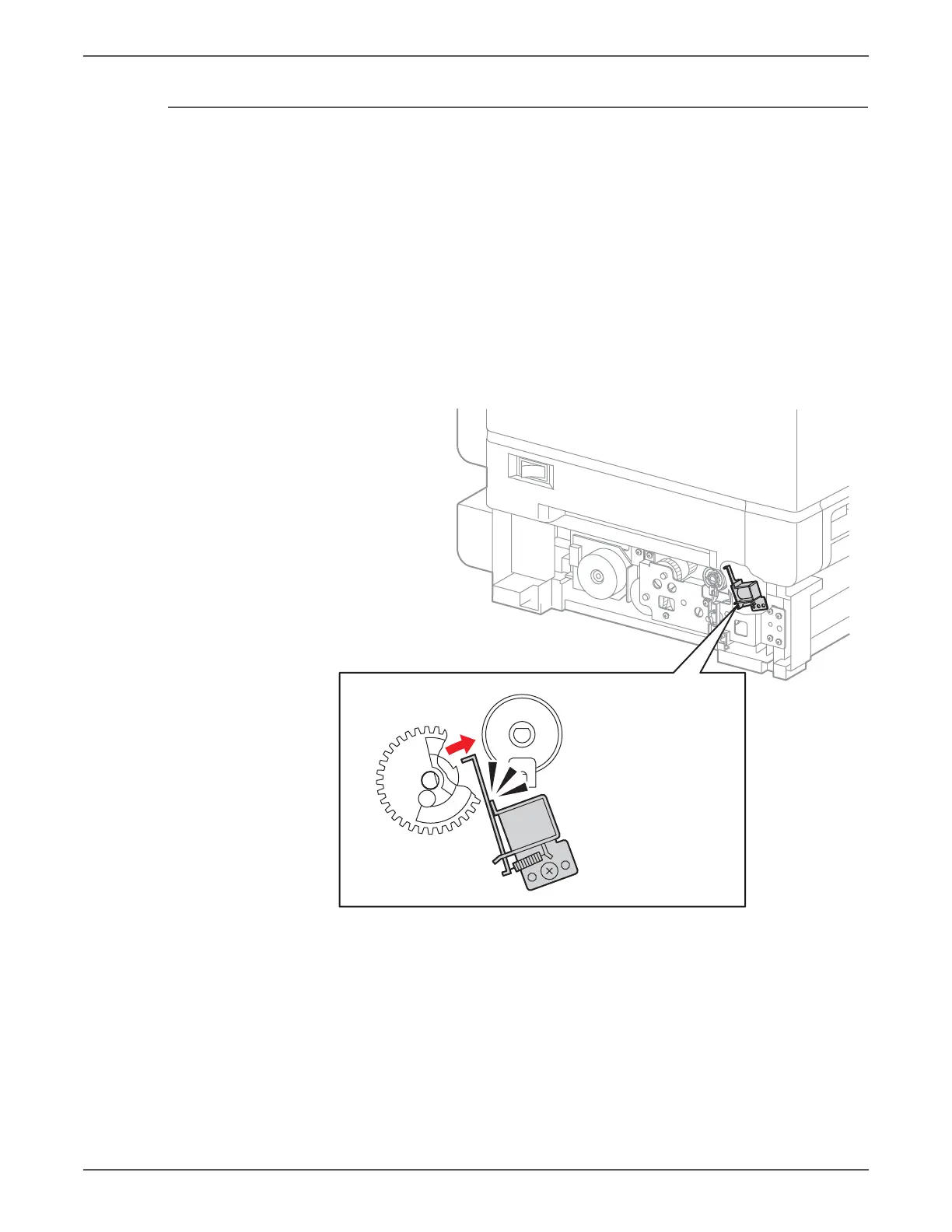

s6500-132

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
